The CommonLands CIL08.0-F1.8-CSNOIR is a 8.0mm F/1.8 CS Mount Lens for 12MP+ CS Cameras such as the Raspberry Pi HQ Camera.
The CommonLands CIL08.0-F1.8-CSNOIR is a 8.0mm F/1.8 CS Mount Lens for 12MP+ CS Cameras such as the Raspberry Pi HQ Camera.
The CommonLands CIL08.0-F1.8-CSIR 8.0mm EFL lens is pictured with the Raspberry Pi HQ Camera.
The CommonLands CIL08.0-F1.8-CSIR 8.0mm EFL lens is pictured next to the Raspberry Pi HQ Camera.
The output from a 12MP 8.0mm CS mount lens on the Raspberry Pi High Quality Camera.

4K+ Normal Angle 8mm CS-Mount Lens

Portrait 8.0mm CS Mount Lens

This 12MP 8.0mm EFL CS-Mount Lens provides a 45⁰ Horizontal Field of View. This is equivalent to a 45mm lens used on a 35mm full-frame camera. This lens is compatible with the off-the-shelf Raspberry Pi HQ camera and other security CS-mount cameras.
$59.00

Request a Quote for Quantities >10.

Lens Features

Portrait FoV

Create a camera for standard applications with a FoV similar to cellphone cameras

 4K+ Resolution

Achieve SFR (system MTF) which matches the Pi HQ sensor, the Sony IMX477.

Drop-In Compatible

This lens has a CS mount and can be quickly swapped in and out for other lenses.

High Resolution 8.0mm CS Mount Lens for the Raspberry Pi High Quality Camera.

Drop-in Compatible

Quickly switch in and out for other lenses, without having to make ad-hoc DIY mounting and focus modifications.

Specification Table

Lens Model #CIL08.0-F1.8-CSIR
Resolution12 Megapixels
Sensor size
Up to 1/1.7" (IMX477 Compatible)
EFL8.0mm Optical EFL
45mm Full-Frame Equivalent
Field of View45° HFoV @ 6.2mm image circle
Distortion8% from rectilinear at corners
F/#2.0 Fixed
Hyperfocal Distance5m (IMX477)
Weight28g
IR Cut Off FilterNo IR Cut Off Filter (NOIR)
ConstructionComing Soon

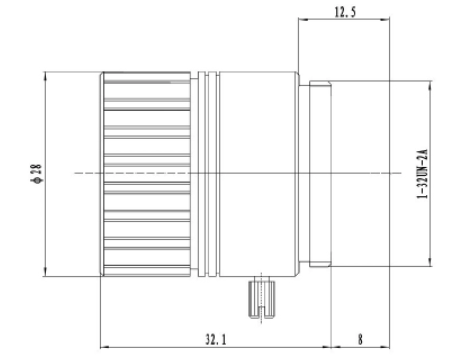

Mechanical Drawing

A 4K+ 8.0mm CS Mount Lens.

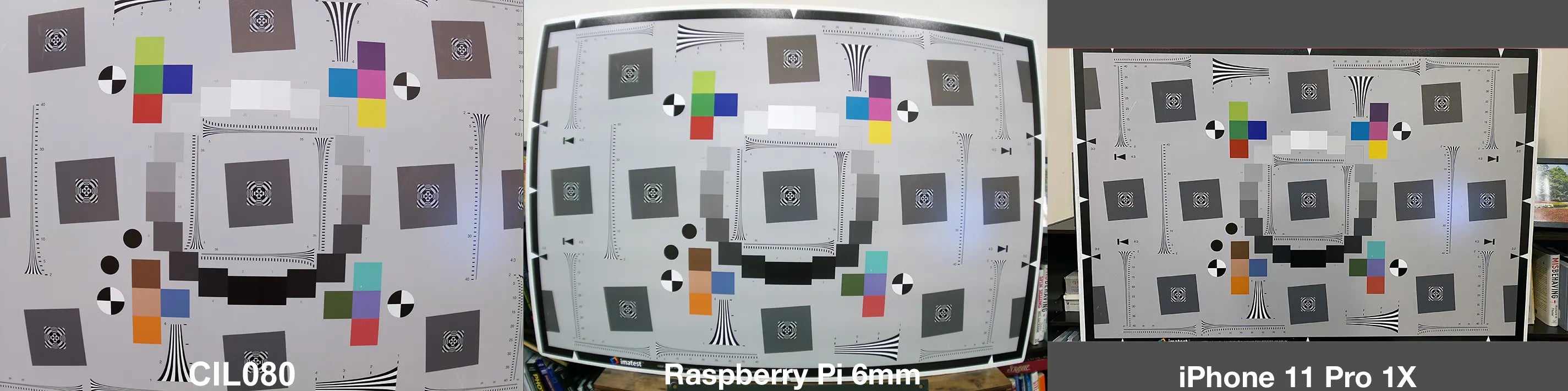

Performance Benchmark

Objectively characterizing the performance of a camera requires dozens of different metrics. While all of these are looked at by professional camera engineers, many are unnecessary for hobbyist component selection when a predetermined image sensor issued. For entry level camera engineering sake, we recommend starting with four first order system performance metrics: sharpness, color, shading and field of view.

Resolution / Sharpness (sSFR)

Coming Soon
