Wide-Angle No-Distortion 2mm M12 Lens for 1/2.3" sensors such as IMX477 and IMX377

Low Distortion 2.2mm M12 Lens

The CIL023 is a 2.2mm F/2.2 wide-angle M12 lens which provides a 125° Diagonal Field of View on 1/2.3" sensors. This lens is rated for 8MP+ and is one of the lowest distortion 120°+ M12 lenses on the market.
$39.00
Selected Part Number is: CIL023-F2.2-M12A650
Request Volume Pricing

There are 247 units CIL023-F2.2-M12A650 (F/2.2 / M12A / With 650nm IRC Filter) in stock in the US.

There are 129 units CIL023-F2.2-M12ANIR (F/2.2 / M12A / Without Filter) in stock in the US.

Lens Features

Wide-Angle FoV

One of widest low distortion M12 lenses on the Market.

 4K+ Resolution

MTF suitable for 4K+ 1/2" sensors from multiple aspheric components.

Optical and Mechanical Specification Table
Lens Parameter Performance Detail
Part NumberCIL023
Format Type1/2.3"
EFL2.2mm
F#2.2
Resolution8MP-10MP
Field of View114° @ 6.2mm
Calculate for your sensor using our M12 Lens Calculator
Image Circle7.9mm
Distortion <6% TV
See mechanical drawing for Optical, FΘ, and full TV distortion.
Weight9.3g
IR Cut-Off FilterP/N With: CIL023-F2.2-M12A650
P/N Without: CIL023-F2.2-M12ANIR
ConstructionHybrid Glass/Plastic, with AL6061 Barrel
Mechanical Variants
Variant Description
"M12A" No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel

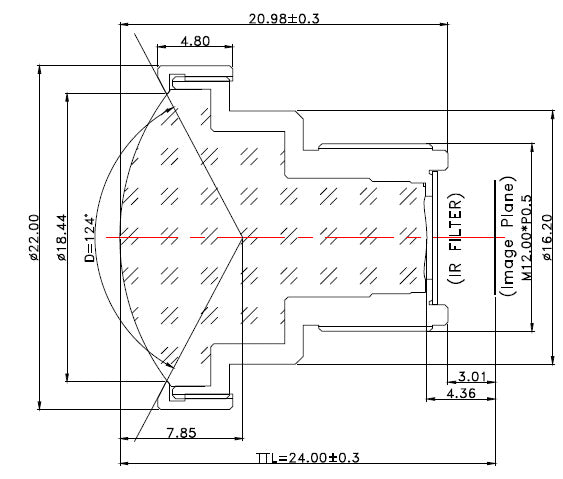

Mechanical Layout

The Mechanical Diagram for a Wide Angle No Distortion F/1.8 Lens
Camera Mechanical Compatibility Table*
Camera/Mount Compatibility
Commonlands Compatible Mount CLA018
e-con Systems Standard S-Mount 9mm-11mm tall mount
Allied Vision Alvium S-Mount Yes
FLIR Blackfly S Board No
iDS uEye LE Rev1.1: No, Rev1.2: No
The Imaging Source M12 No
Basler Dart S-Mount Please submit Inquiry to Basler

*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.
