6mm M12 Lens for 1/2.3" sensors

Low Distortion 6mm M12 Lens

The CIL060 is a 6.0mm M12 lens which provides a 55° HFoV on 1/2.3" type sensors like the IMX477.
$29.00
Selected Part Number is: CIL060-F2.8-M12A650
Request Volume Pricing

There are 163 units CIL060-F2.8-M12A650 (F/2.8 / M12A / With 650nm IRC Filter) in stock in the US.

There are 202 units CIL060-F2.8-M12ANIR (F/2.8 / M12A / Without Filter) in stock in the US.

Lens Features

Standard FoV

A 6mm M12 lens has FoV similar to a full frame format 35mm lens.

Large Format

Build with the M12 mount form factor that has >9.0mm image circle.

Optical and Mechanical Specification Table
Lens Parameter Performance Detail
Part NumberCIL060
Format Type1/2"
EFL6mm
F#2.8 Fixed
Resolution3-5MP
Field of View55° @ 6.2mm image circle
Calculate for your sensor using our M12 Lens Calculator
Image Circle8.0mm
Distortion <2% TV
Weight6.0g
IR Cut-Off FilterP/N With: CIL060-F2.8-M12IR
P/N Without: CIL060-F2.8-M12NIR
ConstructionHybrid Glass/Plastic with Aluminum Barrel
Mechanical Variants
Variant Description
"M12A" No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel

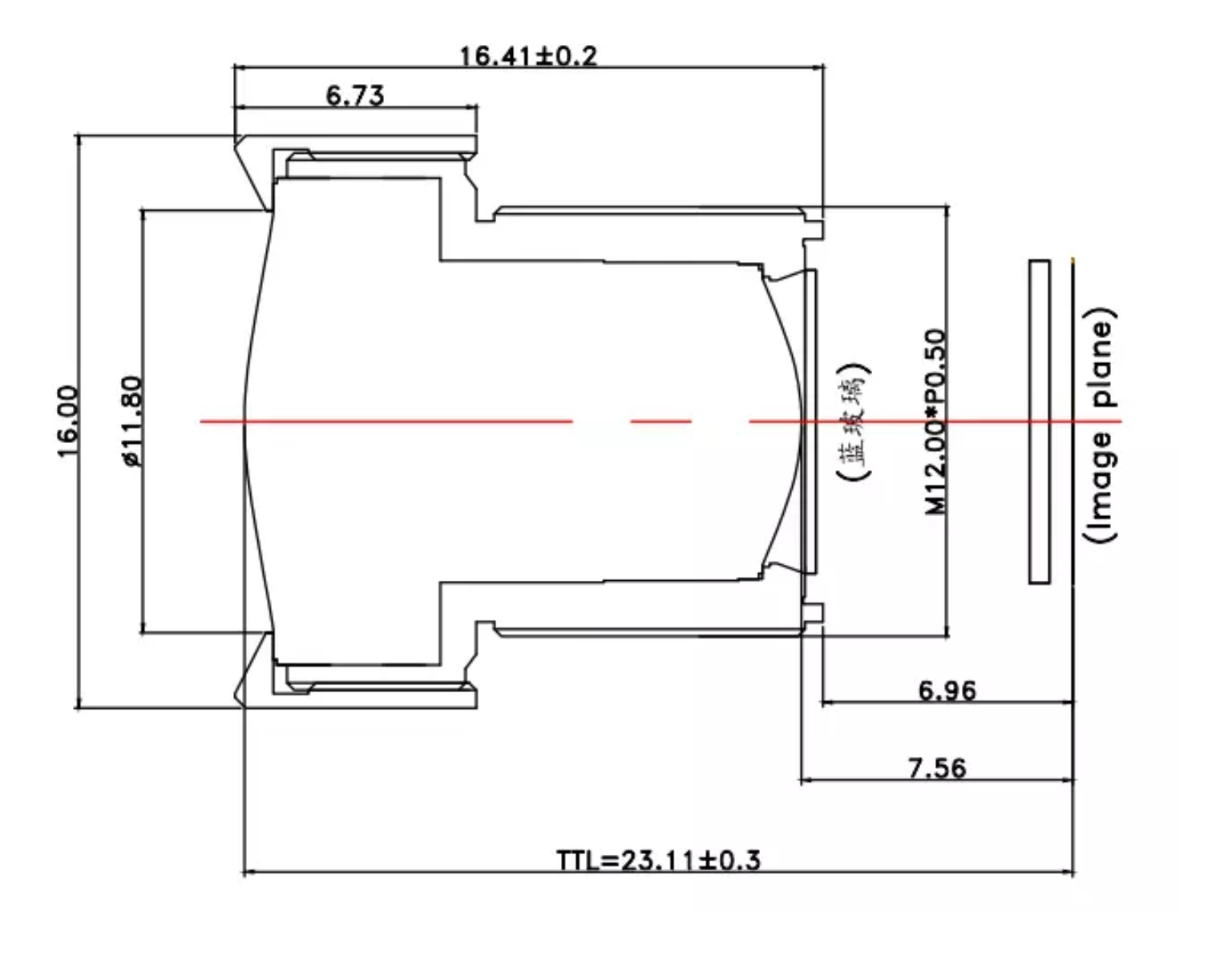

Mechanical Layout

A 6mm M12 Lens for IMX490 and IMX291| 6mm S-Mount
Camera Mechanical Compatibility Table*
Camera/Mount Compatibility
Commonlands Compatible Mount CLA019
e-con Systems Standard S-Mount 10mm-13mm tall mount
Allied Vision Alvium S-Mount Yes
FLIR Blackfly S Board Yes
iDS uEye LE Rev1.1: Yes, Rev1.2: Yes
The Imaging Source M12 Yes
Basler Dart S-Mount Yes

*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.
