Enhance Your Embedded Vision System
High quality imaging lenses ready for volume manufacturing. M12 lenses, C-mount, and M8 lenses with US-based engineering support. Same-day shipping from US inventory.
Optical Solutions Ready for Volume Manufacturing
Lenses engineered for CMOS sensors — in stock for immediate delivery

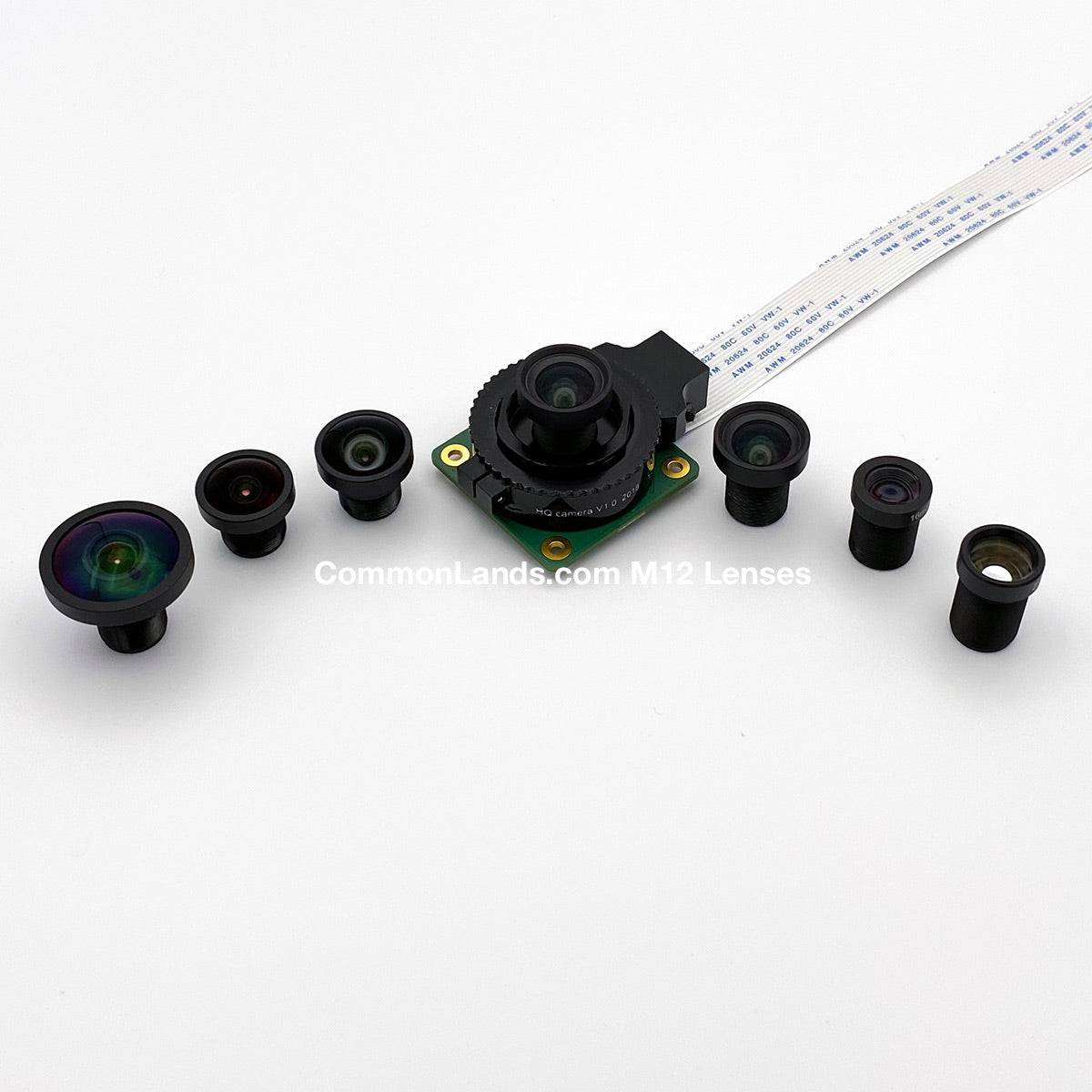

M12 Mount Lenses
Compact S-mount lenses optimized for embedded vision in robotics, drones, and IoT devices. Volume manufacturing ready with consistent quality across batches.
Technical Specifications
For Embedded Vision Engineers
System Integration Focus
- Accurate technical information and .STP files
- Wide FOV fisheye to narrow telephoto options
- Low distortion options available
For Robotics Applications
Navigation & Perception
- Customizable filters for laser projectors
- Fast F/1.4–F/1.8 options
- Ingress protected options for external applications
For Machine Vision Systems
Industrial Inspection
- High-resolution options for measurement
- 100% MTF tested optical performance
- Stable mounting solutions for vibration
Machine Vision Lenses: M12 & C-Mount Basics
A technical introduction to selecting imaging lenses for embedded vision systems — focal length, sensor format, field of view, and mount types explained.
Choosing the right imaging lens starts with understanding your sensor format, required field of view, and working distance. This overview covers the fundamentals of M12 (S-mount) lenses and C-mount lenses — the two most common mount types in embedded machine vision — and how to match them to CMOS sensors from Sony, OmniVision, and OnSemi.
For hands-on lens selection, use the Field of View Calculator to compute horizontal, vertical, and diagonal FOV for any lens-sensor combination, or the EFL Calculator to find the focal length you need for a target field of view. Technical details on sensor dimensions are available in our CMOS sensor size reference.
Focal Range
0.8mm – 75mm
Sensor Coverage
1/6" to 1.2"
Filter Options
IR/UV/Polarizing
Volume Ready
10K+ Monthly
Shipping
Same Day
Camera Engineering Calculators
Essential tools for embedded vision system design
Field of View Calculator
Calculate horizontal, vertical, and diagonal FOV for any lens-sensor combination.
Launch Calculator →Effective Focal Length
Determine required focal length for your target field of view.
Launch Calculator →Depth of Field
Calculate near and far focus limits for your camera system.
Launch Calculator →
US-Based Facility with >3000sqft Cleanroom Space
Our San Diego facilities provide comprehensive optical testing, integration services, and custom lens manufacturing. With 25,000+ lenses in stock ready for volume manufacturing, we support both rapid prototyping and high-volume needs.
ISO 9001:2015
Certified Quality System
100% Testing
MTF Performance
RoHS
Environmental Compliance
Traceability
Available (additional cost)
Product Excellence for Volume Manufacturing
Advanced optical characterization and integration services
Optical Characterization
Measurement via Trioptics HR2.
- MTF measurement
- Distortion mapping
- Relative Illumination
- Chief ray angle
System Integration
Complete module development.
- Lens-sensor optimization
- Assembly services
- Filter integration
- Custom mounting
Environmental Validation
- Thermal cycling
- Vibration testing
- Humidity resistance
- Ingress protection
Volume Manufacturing
Scalable manufacturing.
- 10,000+ units/month
- Consistent quality
- JIT delivery
- Buffer stock
Customizations and Custom Designs
From modified COTS to ground-up optical design — tailored solutions for your application. Our US-based engineering team provides comprehensive optical design and customization services. Whether you need a modified commercial lens or a completely new optical design, we deliver solutions optimized for your specific requirements with prototype development.
Filter Integration
- • IR-Pass for night vision
- • Bandpass filters for specific wavelengths
- • Custom spectral response curves
F-Number Customization
- • Higher F# for extended depth of field
Mechanical Modifications
- • Custom barrel dimensions
- • Flange focal distance adjustments
- • Weight optimization (plastic barrel)
Ingress Protection
- • IP67 waterproof designs
- • IP69K waterjet resistance
- • Hydrophobic coating options
Minimum order quantities apply for custom solutions.
Contact our engineering team to discuss your requirements.
Camera Module Assembly Services
Lens-to-sensor integration in our Class 1000 hardwall cleanroom
Volume Manufacturing Ready Assembly
Transform your optical design into manufacturing-ready camera modules. Our cleanroom facilities provide precision assembly services from prototypes to high-volume manufacturing with rigorous contamination control.
Supporting 100 to 10,000+ units per month in our Class 1000 hardwall cleanroom. Compatible with Sony, OmniVision, and OnSemi sensors. Environmental control ensures particle-free assembly for medical, automotive, and aerospace applications.
Vision Solutions by Application
Specialized optical components for every embedded vision vertical
Mobile Robotics
Wide FOV lenses for navigation and SLAM applications
Aerial Robotics
Lightweight lenses for drones with stabilized mounting
Machine Vision
High-resolution optics for inspection and quality control
Automotive
Ruggedized lenses for ADAS and driver monitoring
Surveillance
Day/night lenses with IR capability
Smart Retail
Intelligent checkout and inventory vision solutions
Frequently Asked Questions
Quick answers about imaging lenses and vision systems
What imaging lenses are available for volume manufacturing?
We offer 25,000+ imaging lenses ready for volume manufacturing including M12 lenses (0.8mm–75mm focal lengths), C-mount lenses (8mm–75mm), M7/M8 miniature lenses, and optical filters. All lenses are optimized for CMOS sensors and include options for IR-cut filters, wide FOV fisheye designs, and low-distortion configurations.
How quickly can I get imaging lenses for prototyping and production?
With 25,000+ imaging lenses in US stock, sample quantities ship same-day for orders placed before 3PM PST. Volume orders up to 10,000 units per month typically ship within 1–3 days. Free shipping is available for US orders. Browse our full lens catalog to find in-stock options.
What customization options are available for imaging lenses?
We offer comprehensive lens customization including filter integration (IR-pass, bandpass filters), F-number modifications for depth of field control, mechanical barrel adjustments for your housing, and ingress protection up to IP69K for harsh environments. Custom optical designs are available with prototype development. Contact our engineering team to discuss requirements.
How do you ensure imaging lens quality for volume orders?
Every imaging lens undergoes 100% MTF (Modulation Transfer Function) testing to verify optical performance. We perform batch validation including distortion mapping and environmental testing. Our ISO 9001:2015 certified quality management system ensures consistent lens quality across all production batches. Unit-level traceability reports are available at additional cost.
What support is available for imaging lens selection and integration?
Our US-based optical engineering team provides lens selection guidance based on your sensor specifications and application requirements. We offer camera module assembly services in our Class 1000 hardwall cleanroom, including lens-to-sensor alignment and testing. Technical documentation, .STP files, and Zemax data are available for system integration.
Technical Resources
Tools and documentation for camera system design
Ready for Volume Manufacturing?
Get professional imaging lenses from our 25,000+ lens inventory. ISO 9001 certified quality with US-based engineering support and same-day shipping.
