35mm C-Mount lens for up to 2/3" sensors such as IMX264 and IMX547
35mm C-Mount Lens 2/3" 5MP
The CIL526-F1.5-CMANIR is a fast 35mm C-Mount lens for up to 5MP 2/3" sensors with 3.45um pixel pitch. The aperture is adjustable from F/1.5 to F/16 and the lens has a minimum working distance of 200mm.
In stock — orders before 12 PM PST ship same day
Lens Features
8MP Resolution
Suitable for 2.74um pixel pitch at F/2.8

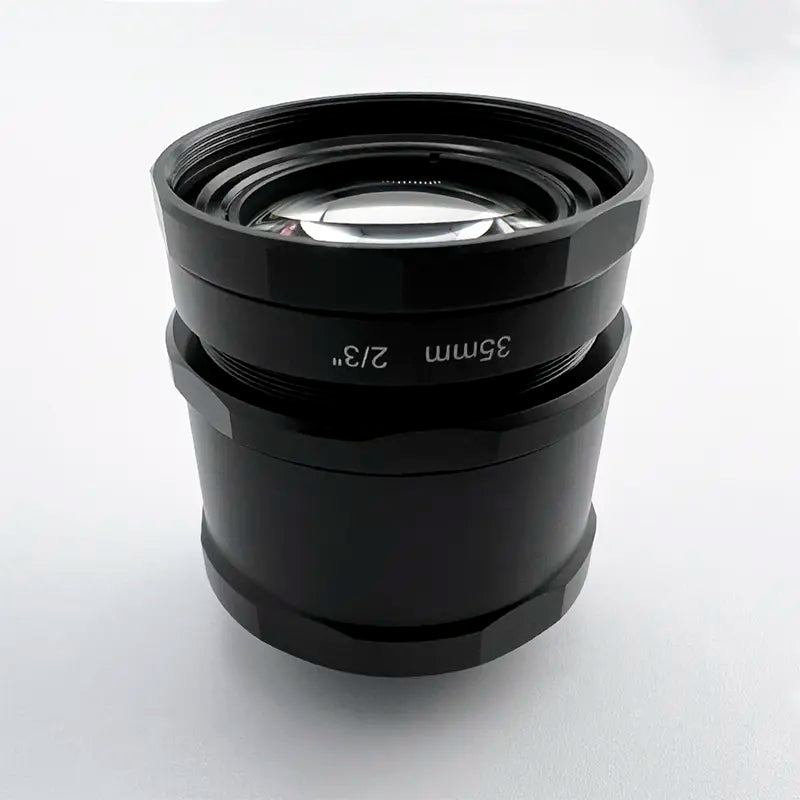

“R” Ruggedized Version Available
Build a vibration-resistant computer vision camera..
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL526 |
| EFL | 35.0 |
| F# | 1.5 |
| Resolution | 8MP (2.74um) |
| Field of View | 17° @ 11.00mm image circle — Calculate FoV for your sensor |
| Image Circle | 12.8mm |
| Distortion | -0.8% from Rectilinear |
| Weight | 122g |
| Construction | Glass |
| Chief Ray Angle | 6° |
Mechanical Layout
Frequently asked questions
What sensors work with the CIL526 35mm C-mount lens?
The CIL526 fits 2/3″ sensors including the Sony IMX264 and IMX547 at up to 8MP resolution with 2.74µm pixel pitch. The 12.8mm image circle covers the full 2/3″ format.
What is the difference between CMA and CMR variants of the CIL526?
The CMA variant has an adjustable aperture from F/1.5 to F/16. The CMR variants use fixed apertures and locked mechanical parts, which makes more sense in vibration and shock environments.
What aperture range does the CIL526 offer?
The standard CIL526-F1.5-CMANIR adjusts from F/1.5 to F/16. Ruggedized variants are available at fixed F/1.5, F/2.0, F/2.8, and F/4.0. You can use depth of field calculator to choose the aperture for your working distance.
How much distortion does the CIL526 35mm lens have?
Distortion is -0.8% from rectilinear at the 11mm image circle. That level works for most machine vision inspection and measurement tasks without software correction.
Does the CIL526 ship same day from the US?
Yes, all in-stock CIL526 variants ship same day from San Diego for orders placed before 12 PM PST. Volume pricing starts at 50 units.
What is the minimum working distance of the CIL526?
The minimum working distance is 200mm, measured from the front of the lens to the object plane. The CIL526 focuses from 200mm to infinity.
Similar C‑Mount Lenses: 4mm – 75 mm Industrial Optics
