Imaging Lens Testing Service.webp__PID:81c8ec7d-895d-4327-b19a-093b79971177Download the Machine Brochure

Standard Included Test Items
(Pricing is per unit, Volume Discounts Are By SKU)

ItemDescription
Effective Focal LengthEFL On Axis and EFL versus Field
MTF through focus
MTF versus field
MTF versus spatial frequency		MTF measurements using Photopic Eye at Infinity conjugate
9 points along 3 azimuts
Distortion 21 points along one axis
Lateral Chromatic Aberration480nm, 546nm, 644nm in one chart
Longitudinal Chromatic Aberration480nm, 546nm, 644nm in one chart.
AstigmatismMTFS vs MTFT surface map
Field CurvatureAcross field

Custom Testing Options (On Request, Quote)

Contact us if you have specific test report formats or requirements. We will also test imaging lenses from other companies, but the price is higher. Here are a few items to consider, but this is not a comprehensive list.

ItemDescription
Test PointsHigher Density
Field Maps
MTF through focus
MTF versus field
MTF versus spatial frequency		At single wavelength and/or 850nm and 940nm
Distortion 21 points along one axis
Lateral Chromatic Aberration 546nm
Longitudinal Chromatic Aberration850nm and 940nm via Through Focus MTF
Contact Our Team With Your Test Report Request

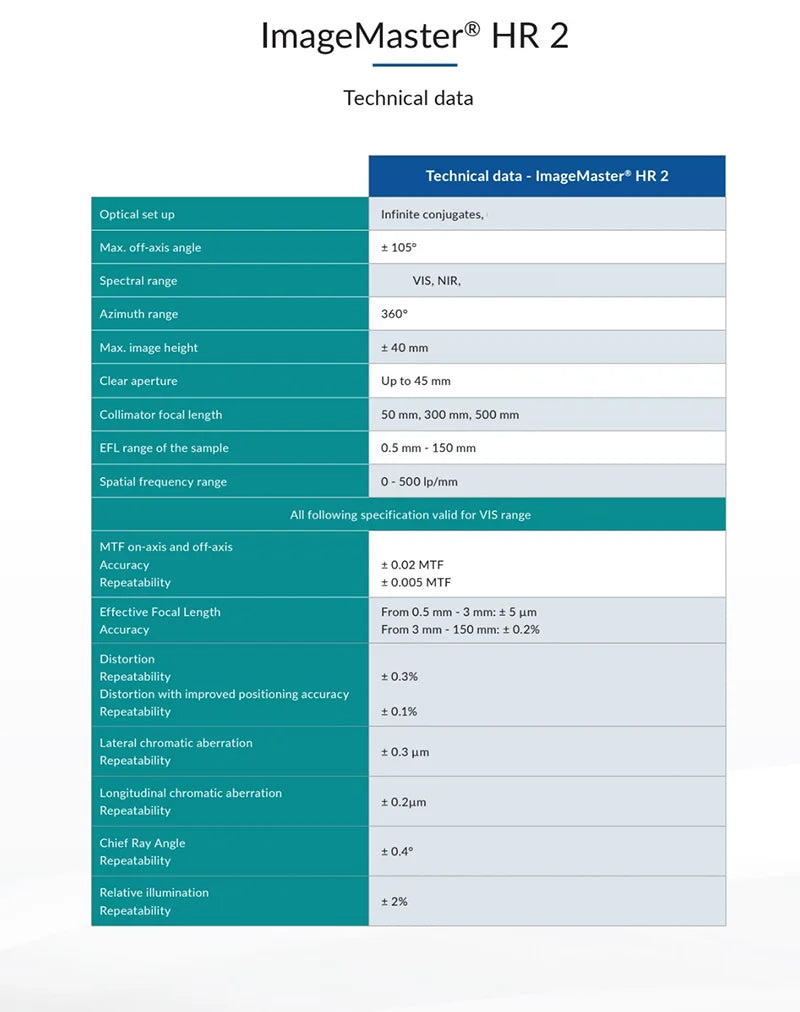

MTF testing performance.webp__PID:1da3a36d-6974-425c-b67a-cb3ba6e11372
M12 Lenses C Mount Lenses.webp__PID:d39df4c6-9351-4eae-9938-992a7c9a721e

Engineering & Quality Assured

Optical Engineering for M12 Lenses.webp__PID:cabadc1d-9038-478a-9ec1-b9515597d704

US Engineering Support

M12 Lens in the US.webp__PID:de4930ea-2073-44ee-ad75-d40d9d92487e

Easy Global Shipment

M12 Lens Manufacturing.webp__PID:7f1f5e48-3df5-4feb-9fa4-5a6210d8de49

Volume Production Ready

Find other M12 lenses by browsing below our using our M12 Lens Calculator with FoV Calculations.

215°@6.8mm M12 Fisheye Lens
215°@6.8mm M12 Fisheye Lens

CIL220-F2.3-M12BNIR

$39.00
$0.00
View Details
190°@6.4mm Fisheye Lens
190°@6.4mm Fisheye Lens

CIL281-F1.8-M12A650

$59.00
$0.00
View Details
Wide-Angle 4mm M12 Lens
Wide-Angle 4mm M12 Lens

CIL339-F1.6-M12B640

$109.00
$0.00
View Details
No Distortion 3.2mm Lens
No Distortion 3.2mm Lens

CIL034-F2.3-M12A660

$39.00
$0.00
View Details
No Distortion 6mm M12 Lens
No Distortion 6mm M12 Lens

CIL062-F2.8-M12A650

$29.00
$0.00
View Details
IR Corrected 12mm M12 Lens
IR Corrected 12mm M12 Lens

CIL122-F2.0-M12A650

$59.00
$0.00
View Details
Telephoto 35mm M12 Lens
Telephoto 35mm M12 Lens

CIL350-F2.4-M12A650

$59.00
$0.00
View Details
Telephoto 50mm M12 Lens
Telephoto 50mm M12 Lens

CIL051-F2.8-M12ANIR

$79.00
$0.00
View Details
Q: What is an M12 lens (S-mount lens)?

Answer: An M12 lens is a compact lens with a 12 mm thread diameter, often called an S-mount lens. These lenses screws into a camera’s M12 lens mount and are commonly used in board-level cameras for embedded vision systems. M12 lenses are smaller than C/CS-mount lenses, making them ideal for space-constrained applications like robotics​.

Q: What cameras can I use M12 lenses with?

A: There are many embedded vision cameras and AI cameras that are compatible with M12 leness. As long as camera's lens holder is compatible with the mechanical dimensions of the lens, the lens should focus! Please make sure to match the image circle, FoV, and resolution.

Q: How do you focus an M12 lens?

Answer: Use focus targets, then slowly thread the lens while displaying a video. Go past focus, then come back to focus. You can view our full article on how to focus camera lenses.

Looking for recommendations, trying to figure out where to start, or want to discuss customizations? Contact our US-based Optical Engineers.
