Wide Angle Lens for Surveillance and Conferencing
Wide-Angle 3.2mm CS Mount Lens
World Wide Shipping
CIL03.2-F2.0-CSIR Lens Features
>130° FoV
Extend the viewing range of your camera for surveillance and webcam projects.
4K+ Resolution
Achieve SFR (system MTF) which matches the Pi HQ sensor, the Sony IMX477.
Drop-In Compatible
This lens has a CS mount and can be quickly swapped in and out for other lenses.

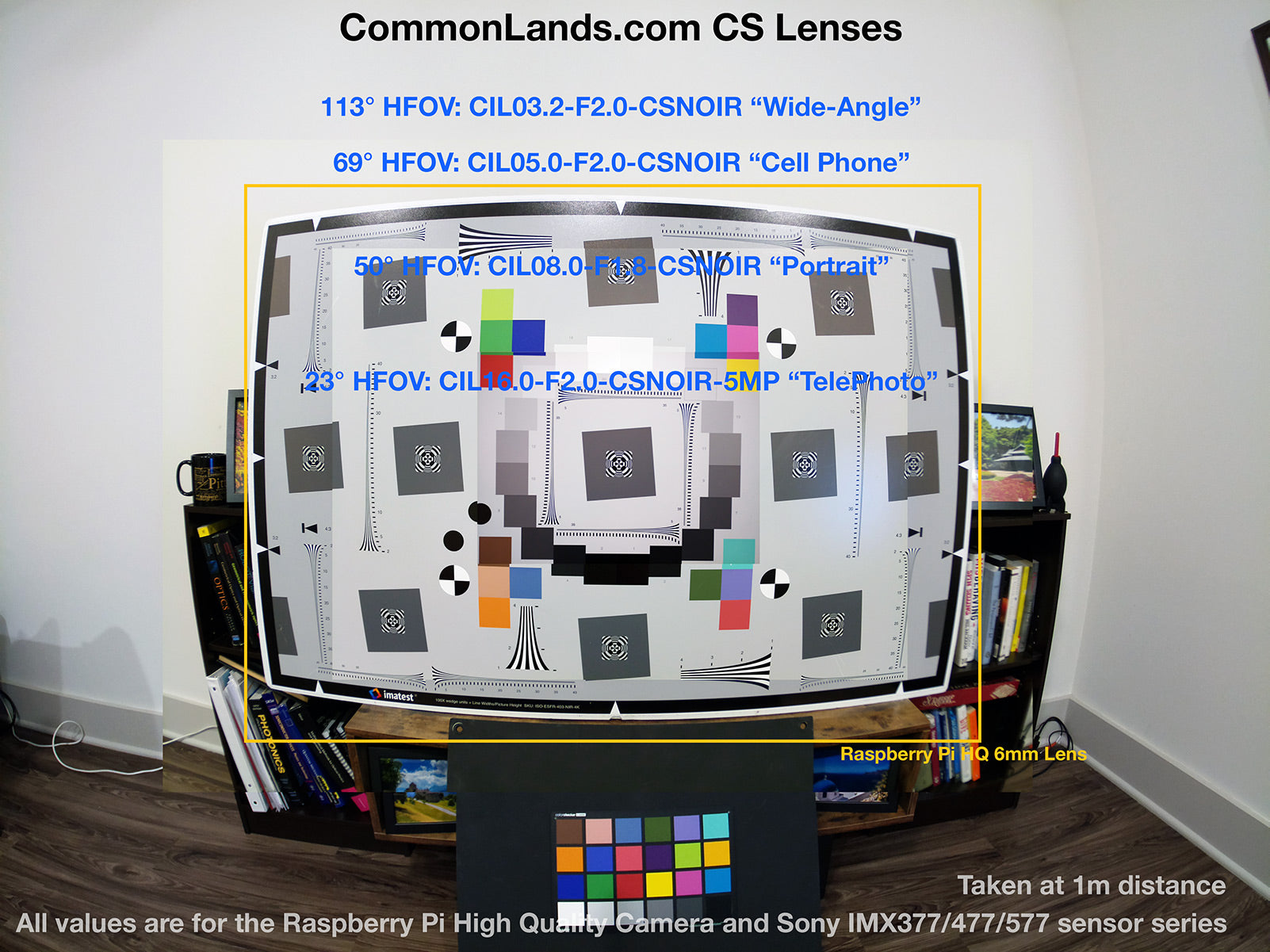

A Wider Field of View
Extend your capture range with a wide field of view that is similar to leading Drone and Video Conferencing Cameras.
Specification Table
| Lens Model # | CIL03.2-F2.0-CSIR |
|---|---|
| Resolution | 12 Megapixels |
| Sensor size | Up to 1/1.7" (IMX477 Compatible) |
| EFL | 3.2mm Optical EFL 12mm Full-Frame Equivalent |
| Field of View | 113° HFoV @ 6.2mm image circle |
| Distortion | 64% from rectilinear at corners |
| F/# | 2.0 Fixed |
| Hyperfocal Distance | 0.8m (IMX477) |
| Weight | 53g |
| IR Cut Off Filter | No IR Cut Off Filter (NOIR) |
| Construction | Coming Soon |
Mechanical Drawing
Performance Benchmark
Objectively characterizing the performance of a camera requires dozens of different metrics. While all of these are looked at by professional camera engineers, many are unnecessary for hobbyist component selection when a predetermined image sensor issued. For entry level camera engineering sake, we recommend starting with four first order system performance metrics: sharpness, color, shading and field of view.
Resolution / Sharpness (sSFR)
Coming Soon
| Weighted Avg | Center | 33% Field | 66% Field |
|---|---|---|---|
| Coming Soon | Coming Soon | Coming Soon | Coming Soon |
Field of View
Coming Soon
| H FoV | V FoV | D FoV | Distortion |
|---|---|---|---|
| Coming Soon | Coming Soon | Coming Soon | Coming Soon |
Color Error (ΔE)
Coming Soon
| ΔE | White Balance |
|---|---|
| Coming Soon | Coming Soon |
Shading
Coming Soon
| Relative Illumination | Color |
|---|---|
| Coming Soon | Coming Soon |
