Voice Coil Auto Focus Motor for M12 Lenses
Voice Coil Auto Focus Motor for M12 Lenses

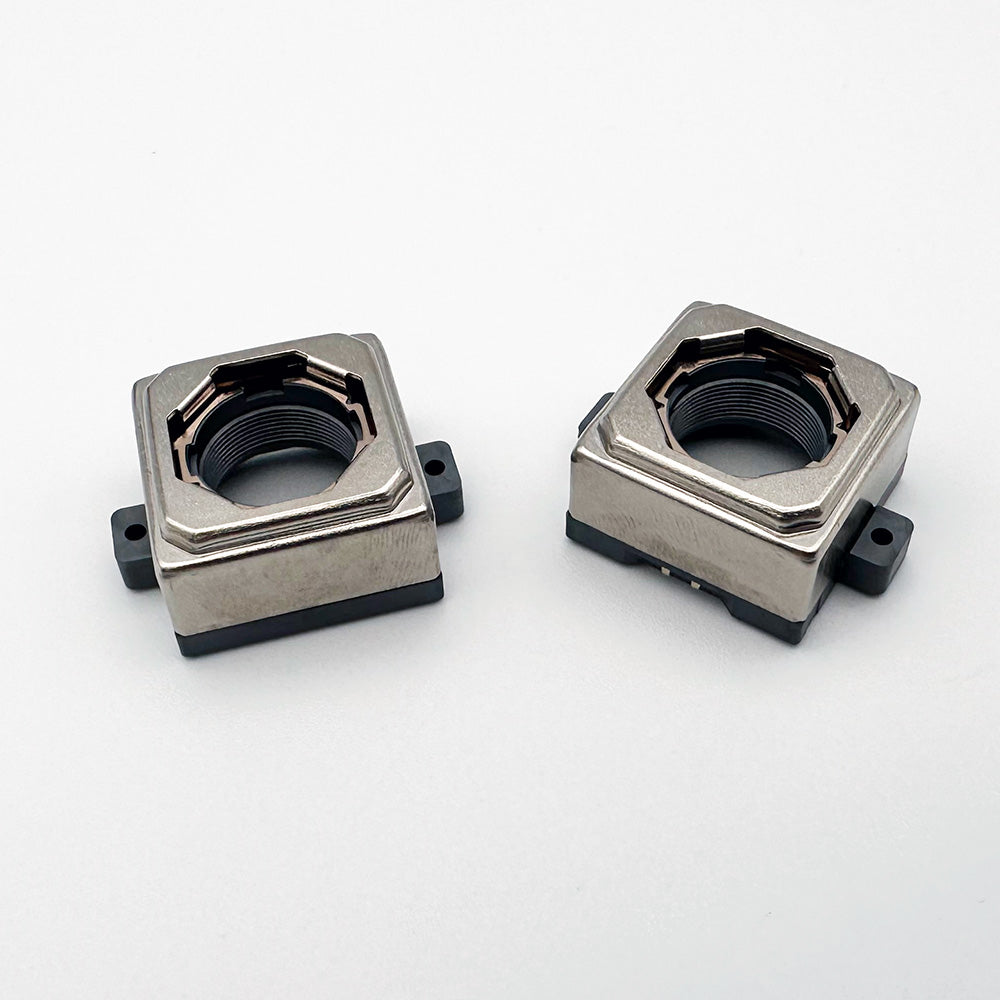

M12 Lens VCM autofocus motor

M12 Voice-Coil Auto-focus Motor up to 7g, 400um

Voice Coil Motor M12 Lens Mount with 23.5mm hole spacing

The CLA321-VCM is an affordable voice-coil auto-focus motor for M12 Lenses. It is rated for lenses up to 7g. This VCM has a full stroke of 400um. Unfortunately, we do not currently provide SW/FW drivers. We recommend the Dongwoon DW9714 or Texas Instruments DRV201 as a driver. There are many other VCM alternatives with different size; please contact us for more details. Please also see our alternative ultrasonic M12 lens focus motor which includes a driver and USB adapter board.

4.8 ( 50 reviews)

$29.00
$0.00

There are 67 units CLA321-VCM (Default Title) in stock in the US.

Get Volume Pricing
.STP / DrawingEngineering Support

Parameter

Specification

Motor Type

Magnetic

Rated Current

120mA

Absolute Max Current

150mA or Less

Insulation resistance

T1MΩ or more (at DC 50V)

Direction of movement

Move away from sensor when (+) voltage is applied to positive leadwire

Red leadwire

Positive (+)

Black leadwire

Negative (-)

Rated stroke

>=600um when applying 100mA in vertical direction with 5g lens

Starting Current

45-65mA (current when displacement becomes 10µm

Sensitivity (Slope)

5µm/mA~40µm/mA

Terminal Resistance

37Ω+/-5Ω at 23C

Linearity

<25µm (maximum difference between stroke points at 50µm and 220µm

Tilt

Dynamic Moving Tilt <=10'

Hysteresis

<10µm

Life test

500,000 cycles (0.5s ON-> 0.5s OFF with current 0->90mA->0 for 1s @ 23C)

Maximum Lens Weight

7g
