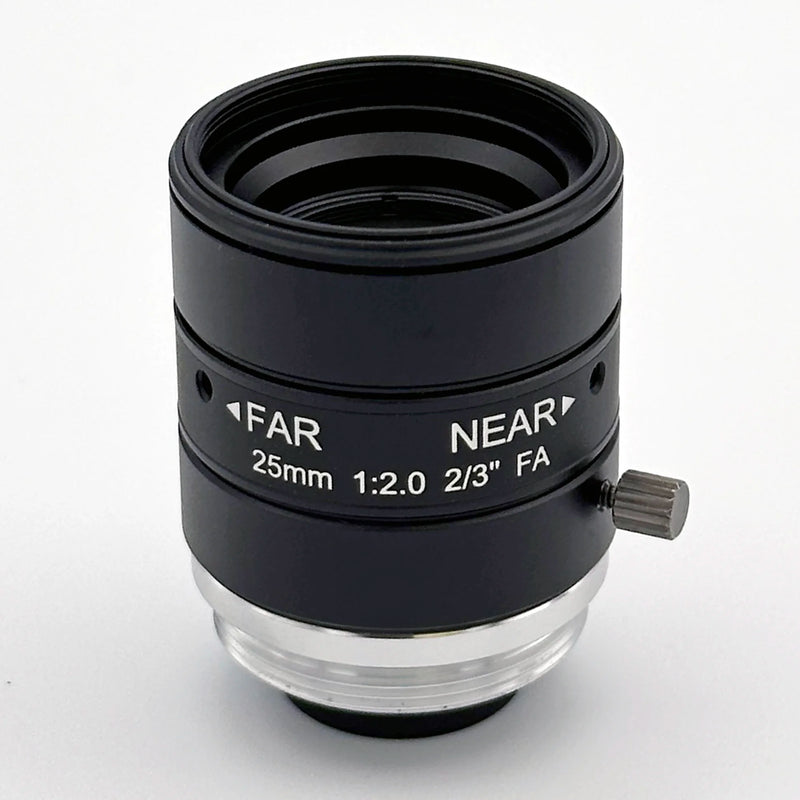

25mm C-Mount lens for up to 2/3" sensors such as IMX487 and Sony IMX536

The CIL534 is a 25mm C-mount lens for 2/3" sensors at 12MP resolution with 2.2um pixel pitch. It covers sensors including the Sony IMX487, IMX536, and comparable 2/3" imagers. Adjustable aperture from F/2.0 to F/16 gives you precise control over depth of field.

Distortion is 0% from rectilinear at minimum object distance. Rare in this price class, and exactly why the lens is strong in dimensional measurement, gauging, and precision metrology. The 26° field of view gives tight framing, while the >11mm image circle covers the full 2/3" sensor format without vignetting. Check field coverage at https://commonlands.com/pages/camera-field-of-view-calculator.

All-glass optical construction in a 50g barrel. The lightest lens in the CIL53x C-mount series. M25.5x0.5 front thread accepts standard filters. Finite conjugate optimization from 200mm to infinity keeps corner sharpness consistent across the working range, which is not always true of infinity-only designs.

Standard C-mount interface (17.526mm flange distance) fits cameras from Basler, FLIR, Lucid Vision, Allied Vision, and other industrial camera manufacturers. The 25mm focal length is a common choice when the job needs moderate magnification for quality inspection, character recognition, or precision assembly verification. More on the mount is at https://commonlands.com/pages/lens-mounts-101.

Available as CIL534-F2.0-CMANIR (without filter). Ships same day from San Diego for orders placed before 12 PM PST. Contact our optical engineering team for volume pricing, Trioptics MTF data, and .STP mechanical files.
