4mm C-Mount Lens for up to 2/3" Sensors such as IMX546 | Industrial Vision

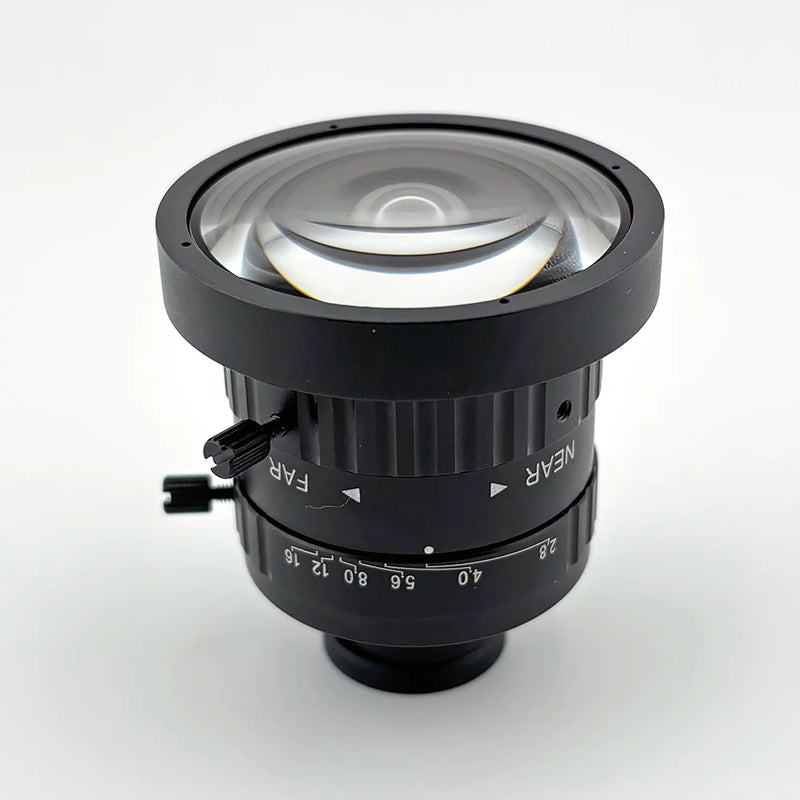

4mm C-Mount Lens 2/3" 5MP for Machine Vision
The 4mm C-Mount Lens for 2/3" Format Image Sensors is a top quality lens designed specifically for industrial applications. The CIL529 model is engineered to accommodate sensors of up to 2/3 inches, making it an excellent choice for various machine vision projects. This versatile lens features a maximum aperture of F/2.8, allowing for optimal light capture, essential in low-light environments.
Users will appreciate the wide field of view (FoV) offered by this lens, which is complemented by its low distortion characteristics, ensuring that your images are sharp and clear. The design is also tailored for global shutter industrial machine vision cameras, which are vital for capturing fast-moving objects without motion blur. The CIL529 lens stands out in its category due to its precise engineering, ensuring reliability and durability in demanding settings.
Whether you are integrating this lens into robotic vision systems, inspection machinery, or any other application requiring high-resolution imaging, the CIL529 delivers outstanding performance. Its compatibility with a wide range of cameras enhances its versatility, making it suitable for various industrial applications. In addition, the lens' robust construction makes it resilient against the rigors of industrial environments, ensuring long-term functionality and performance.
In summary, the 4mm C-Mount Lens for 2/3" Format Image Sensors is an exceptional option for those seeking reliable and efficient machine vision solutions. Embrace high-quality imaging with minimal distortion and wide coverage, designed specifically for your industrial needs.
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL529 |
| EFL | 4.0 |
| F# | 2.8 |
| Resolution | 5MP (3.45um) |
| Field of View | 106° @ 11mm Image Circle. Calculate FoV for your sensor |
| Image Circle | 11.0mm |
| Distortion | -0.03 |
| IR Cut-Off Filter | None |
| Construction | Hybrid Glass/Plastic, Metal |
Frequently asked questions
What sensors does the CIL529 4mm C-mount lens support?
The CIL529 is listed for 2/3 inch sensors up to 5MP, including the Sony IMX546. The focal length is 4mm and the maximum aperture is F/2.8.
What is the field of view of the CIL529?
The CIL529 covers 106° at its 11mm image circle. Use the Commonlands field of view calculator to find the angle for your sensor.
How much distortion does the CIL529 have?
Measured distortion is about -3%, which is low for a 106° wide-angle lens. Calibrate the image if the system measures across the full frame.
Is the CIL529 in stock?
Not always. The page says Commonlands tries to restock quickly and asks customers to contact for availability. Check the live page before planning around immediate delivery.
Is the CIL529 an M12 lens?
No. The CIL529 is a C-mount lens. Use it with cameras that support the 1 inch-32 C-mount thread and the standard 17.526mm flange distance.
When should I choose the CIL529?
Choose the CIL529 when you need a wide 4mm field of view on a 2/3 inch 5MP global shutter camera with distortion held low for the angle.

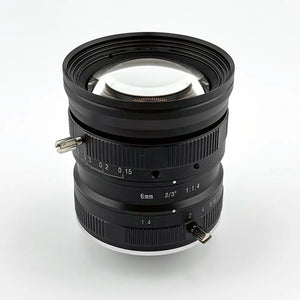

Similar C‑Mount Lenses: 4mm – 75 mm Industrial Machine Vision Optics
