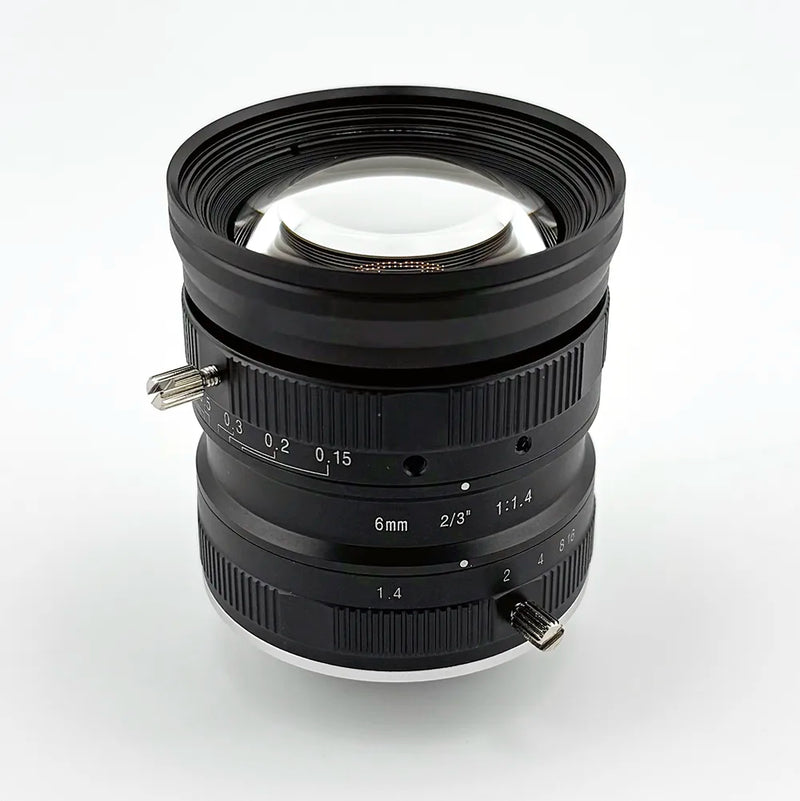

6mm C-Mount Lens for up to 2/3" machine vision cameras such as IMX546
6mm C-Mount Lens 2/3" 5MP
The CIL530 is a 6mm C-Mount lens for up to 2/3" sensors. This lens provides a wide FoV with low distortion. This lens has a maximum aperture of F/1.8 makes it ideal for global shutter industrial machine vision cameras.
In stock. Orders before 12 PM PST ship same day
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL530 |
| EFL | 6.0 |
| F# | 1.8 |
| Resolution | 5MP (3.45um) |
| Field of View | 86°@ 11mm IMage Circle. Calculate FoV for your sensor |
| Image Circle | 11.0mm |
| Distortion | -0.02 |
| Weight | 167g |
| IR Cut-Off Filter | None |
| Construction | All Glass, Metal |
Mechanical Layout
Frequently asked questions
What sensors does the CIL530 6mm C-mount lens support?
The CIL530 is listed for 2/3 inch sensors up to 5MP, including the Sony IMX546. The focal length is 6mm.
What is the field of view of the CIL530?
The CIL530 covers 86° at its 11mm image circle. Use the Commonlands field of view calculator to find the angle for your sensor.
What is the maximum aperture of the CIL530?
The maximum aperture is F/1.8, which is bright for a 6mm wide-angle lens and helps global shutter cameras keep exposures short.
Is the CIL530 in stock?
Not always. The page says Commonlands tries to restock quickly and asks customers to contact for availability. Check the live page before planning around immediate delivery.
Is the CIL530 an M12 lens?
No. The CIL530 is a C-mount lens. Use it with cameras that support the 1 inch-32 C-mount thread and the standard 17.526mm flange distance.
When should I choose the CIL530?
Choose the CIL530 when you need a bright 6mm wide-angle lens on a 2/3 inch 5MP global shutter camera with distortion held moderate.
Similar C‑Mount Lenses: 4mm – 75 mm Industrial Machine Vision Optics
