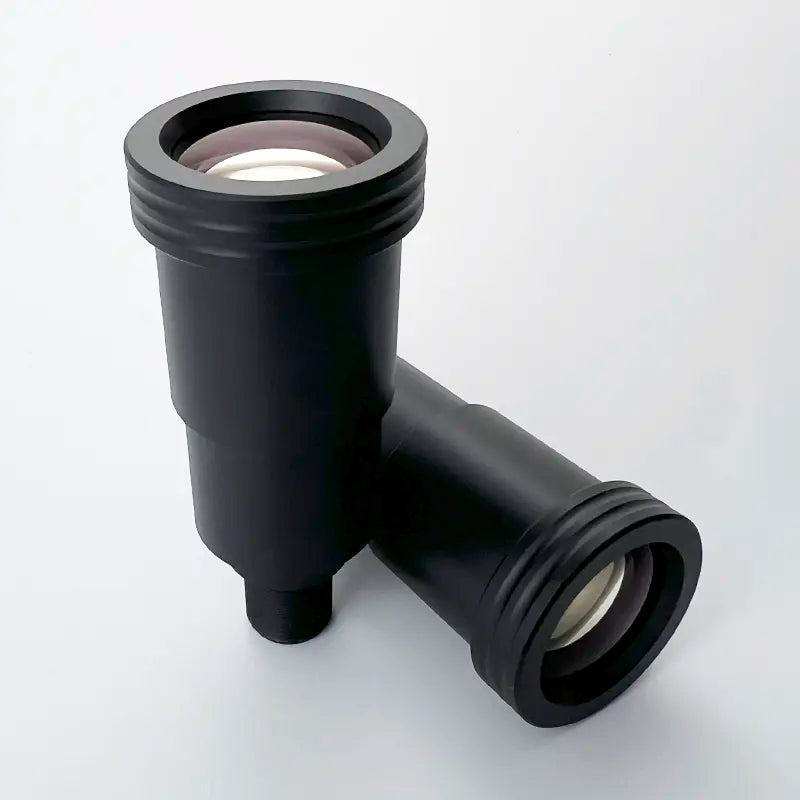

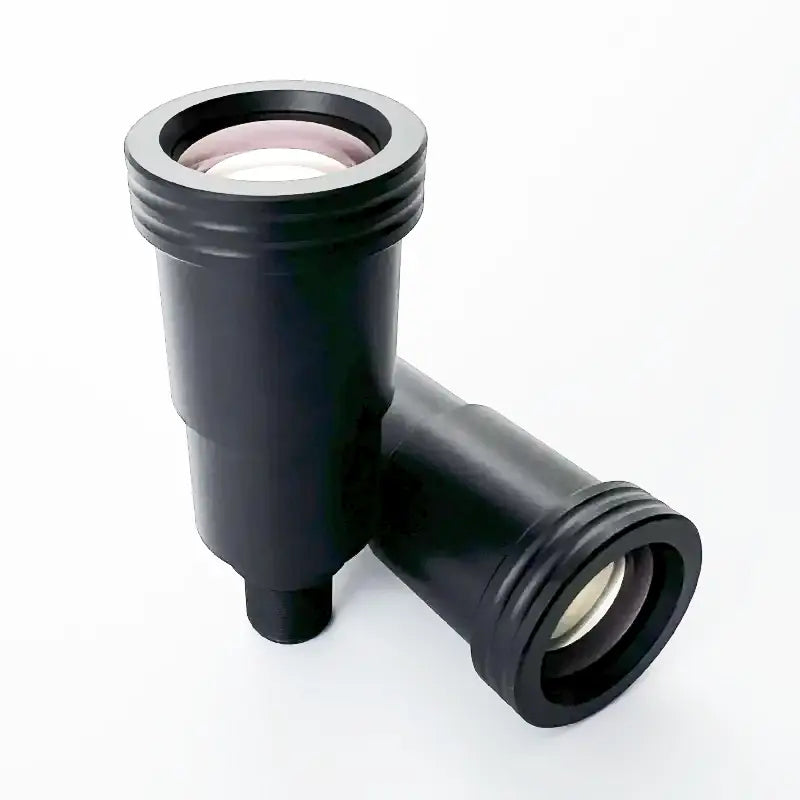

75mm M12 Lens
75mm M12 Lens

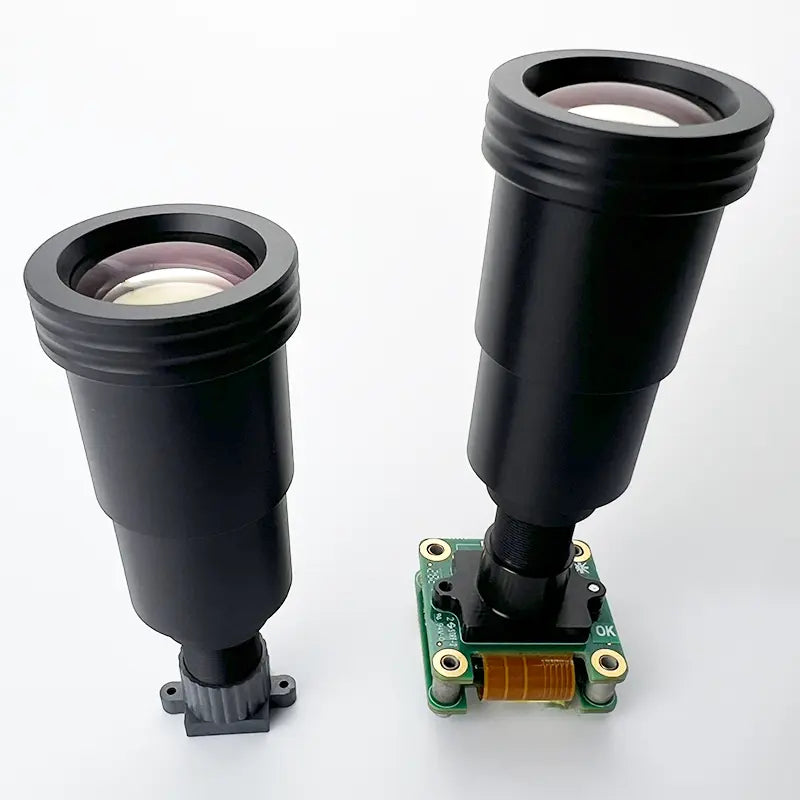

75mm M12 lens S Mount Lens

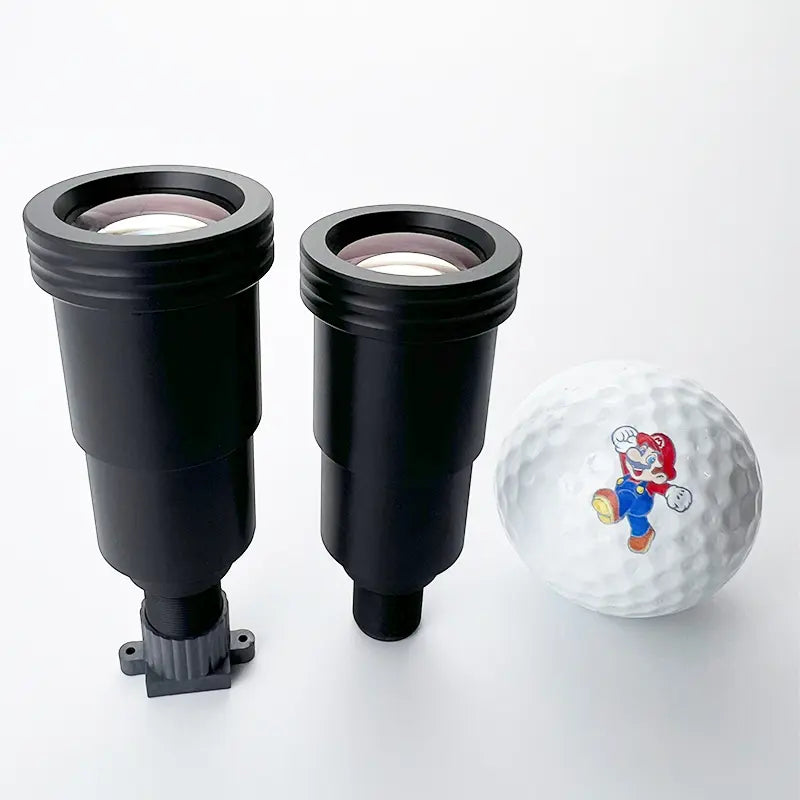

S-Mount 75mm Lens
75mm M12 Lens 1/1.8
75mm S Mount Lens M12 lens
75mm M12 Lens 1/1.8

75mm M12 Lens for up to 1/1.8" such as IMX477 and IMX900

75mm M12 Lens 1/1.8" 12MP

The CIL075 is a 75mm M12 Lens with F/3.5. The lens is suitable for up to 12MP 1/2" format sensors. The long focal length is great for aerial imaging and long range surveillance applications.

4.8 ( 50 reviews)

$129.00
$0.00

There are 2 units CIL075-F3.5-M12ANIR (F/3.5 / M12A / Without Filter) in stock in the US.

Get Volume Pricing
.STP / DrawingEngineering Support

Lens Features

-0.2% Distortion

Wide Angle Viewing

12MP 1/1.8"

Sharp images for demanding 1.85um pixel size

All Glass

Good performance against temperature

CIL075 Technical Specifications

Lens ParameterSpecification
Part NumberCIL075
Focal Length (EFL)75mm
F-Number (F#)3.5
Resolution12MP (1.85μm)
Field of View6.7° @ 8.9mm image circle
Calculate for your sensor
Image Circle8.9mm as-designed
10.0mm maximum
Distortion-0.2% @ 8.9mm
Weight62g
IR Cut-Off FilterOptional
ConstructionAll-Glass
Chief Ray Angle<6°
Mechanical VariantDetail
"-M12A"xxx

Mechanical Drawing, Compatibility, and .STP Download

CIL075 mech layout 2.webp__PID:8dde8858-eaa4-4c03-a73b-92bac2d98f92
Camera/MountCompatibility
Commonlands Compatible MountCLA024
e-con Systems12-15mm tall mount
D3 EngineeringYes
iDS XLSNo
Allied VisionYes
Basler DartYes
The Imaging Source M12 MountYes
Raspberry Pi HQ M12 mountNo
Click here to download .STP files and Mechanical Drawings
M12 Lenses C Mount Lenses.webp__PID:d39df4c6-9351-4eae-9938-992a7c9a721e

Engineering & Quality Assured

Optical Engineering for M12 Lenses.webp__PID:cabadc1d-9038-478a-9ec1-b9515597d704

US Engineering Support

M12 Lens in the US.webp__PID:de4930ea-2073-44ee-ad75-d40d9d92487e

Easy Global Shipment

M12 Lens Manufacturing.webp__PID:7f1f5e48-3df5-4feb-9fa4-5a6210d8de49

Volume Production Ready

Find other M12 lenses by browsing below our using our M12 Lens Calculator with FoV Calculations.

215°@6.8mm M12 Fisheye Lens
215°@6.8mm M12 Fisheye Lens

CIL220-F2.3-M12BNIR

$39.00
$0.00
View Details
190°@6.4mm Fisheye Lens
190°@6.4mm Fisheye Lens

CIL281-F1.8-M12A650

$59.00
$0.00
View Details
Wide-Angle 4mm M12 Lens
Wide-Angle 4mm M12 Lens

CIL339-F1.6-M12B640

$109.00
$0.00
View Details
No Distortion 3.2mm Lens
No Distortion 3.2mm Lens

CIL034-F2.3-M12A660

$39.00
$0.00
View Details
No Distortion 6mm M12 Lens
No Distortion 6mm M12 Lens

CIL062-F2.8-M12A650

$29.00
$0.00
View Details
IR Corrected 12mm M12 Lens
IR Corrected 12mm M12 Lens

CIL122-F2.0-M12A650

$59.00
$0.00
View Details
Telephoto 35mm M12 Lens
Telephoto 35mm M12 Lens

CIL350-F2.4-M12A650

$59.00
$0.00
View Details
Telephoto 50mm M12 Lens
Telephoto 50mm M12 Lens

CIL051-F2.8-M12ANIR

$79.00
$0.00
View Details
Q: What is an M12 lens (S-mount lens)?

Answer: An M12 lens is a compact lens with a 12 mm thread diameter, often called an S-mount lens. These lenses screws into a camera’s M12 lens mount and are commonly used in board-level cameras for embedded vision systems. M12 lenses are smaller than C/CS-mount lenses, making them ideal for space-constrained applications like robotics​.

Q: What cameras can I use M12 lenses with?

A: There are many embedded vision cameras and AI cameras that are compatible with M12 leness. As long as camera's lens holder is compatible with the mechanical dimensions of the lens, the lens should focus! Please make sure to match the image circle, FoV, and resolution.

Q: How do you focus an M12 lens?

Answer: Use focus targets, then slowly thread the lens while displaying a video. Go past focus, then come back to focus. You can view our full article on how to focus camera lenses.

Looking for recommendations, trying to figure out where to start, or want to discuss customizations? Contact our US-based Optical Engineers.
