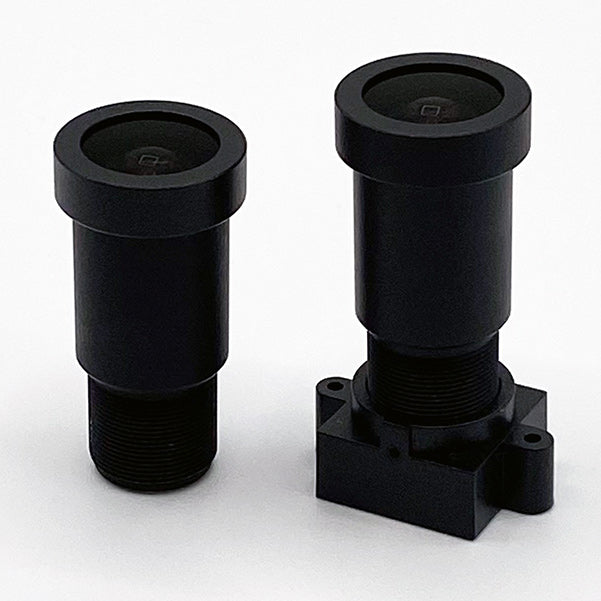

Wide-Angle 7.6mm M12 Lens for 1/1.7" sensors such as AR0821

Mid-Range 7.6mm M12 Lens

The CIL080 is a 7.6mm M12 lens which provides 70° Diagonal Field of View on 1/1.8" sensors. The fast F/1.8 and 12MP+ resolution makes this lens optimal for robotics applications and surveillance cameras.

4.8 ( 50 reviews)

$59.00

$0.00

There are 74 units CIL080-F1.8-M12A650 (F/1.8 / M12A / With IRC Filter) in stock in the US.

There are 22 units CIL080-F1.8-M12ANIR (F/1.8 / M12A / Without Filter) in stock in the US.

Get Volume Pricing

.STP / Drawing Engineering Support

Lens Features

Portrait FoV

Create a camera for standard applications with a FoV similar to cellphone cameras

4K+ Resolution

Achieve SFR (system MTF) which matches the Pi HQ sensor, the Sony IMX477.

Drop-in Compatible

This lens has a CS mount and can be quickly swapped in and out for other lenses.

Optical and Mechanical Specification Table

Lens Parameter	Performance Detail
Part Number	CIL080
Format Type	1/1.7"
EFL	7.6mm
F#	1.8 Fixed
Resolution	12MP
Field of View	70° @ 8.9mm image circle Calculate for your sensor using our M12 Lens Calculator
Image Circle	9.4m
Distortion	-4% TV @ 8.9mm
Weight	11g
IR Cut-Off Filter	P/N Without: CIL080-F1.8-M12IR
Construction	Glass, AL6061

Mechanical Variants

Mechanical Layout

Camera Mechanical Compatibility Table*

Camera/Mount	Compatibility
Commonlands Compatible Mount	CLA020
e-con Systems / Standard S-Mount	12mm-15mm tall holder
Allied Vision Alvium S-Mount	Yes
FLIR Blackfly S Board	Yes
iDS uEye LE	Rev1.1: Yes, Rev1.2: Yes
The Imaging Source M12	Yes
D3 Camera Modules	Yes

*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.

Click here to download .STP files and Mechanical Drawings
