16mm M12 Lens for sensors up to 1/2" such as OX05B1S

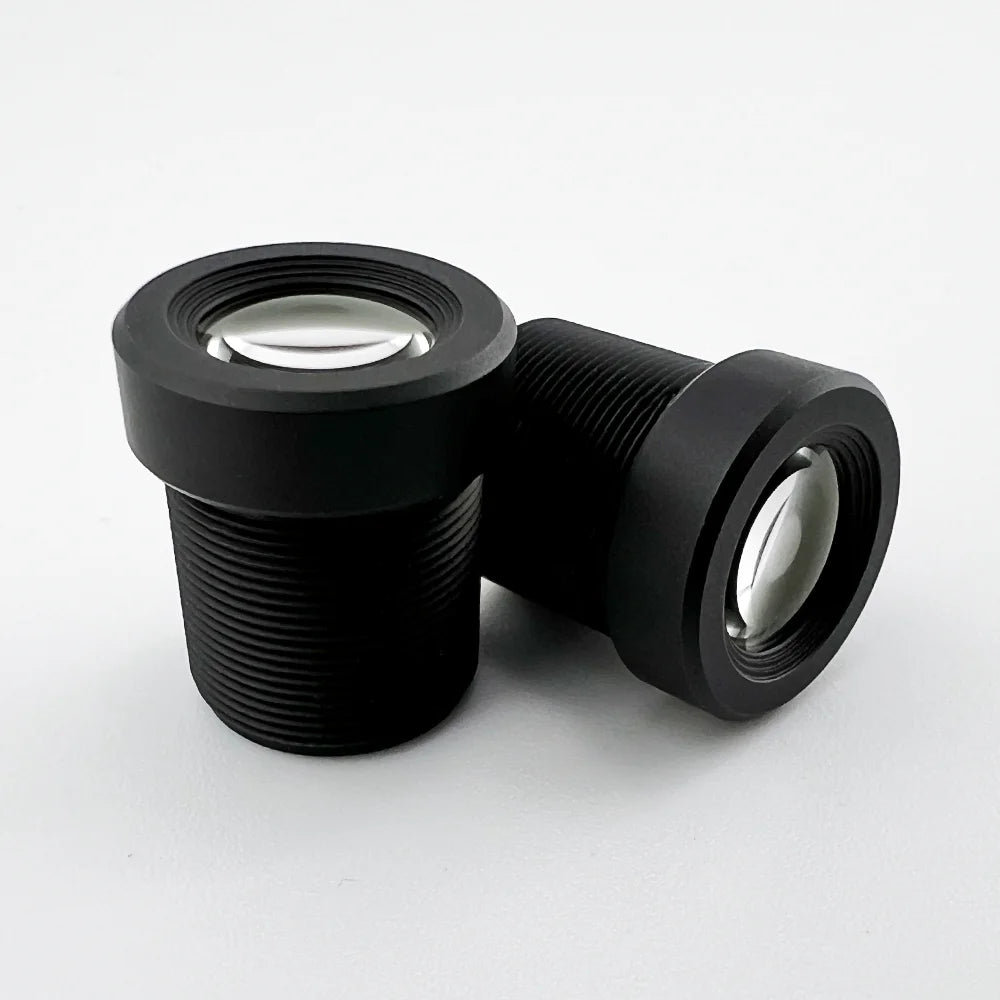

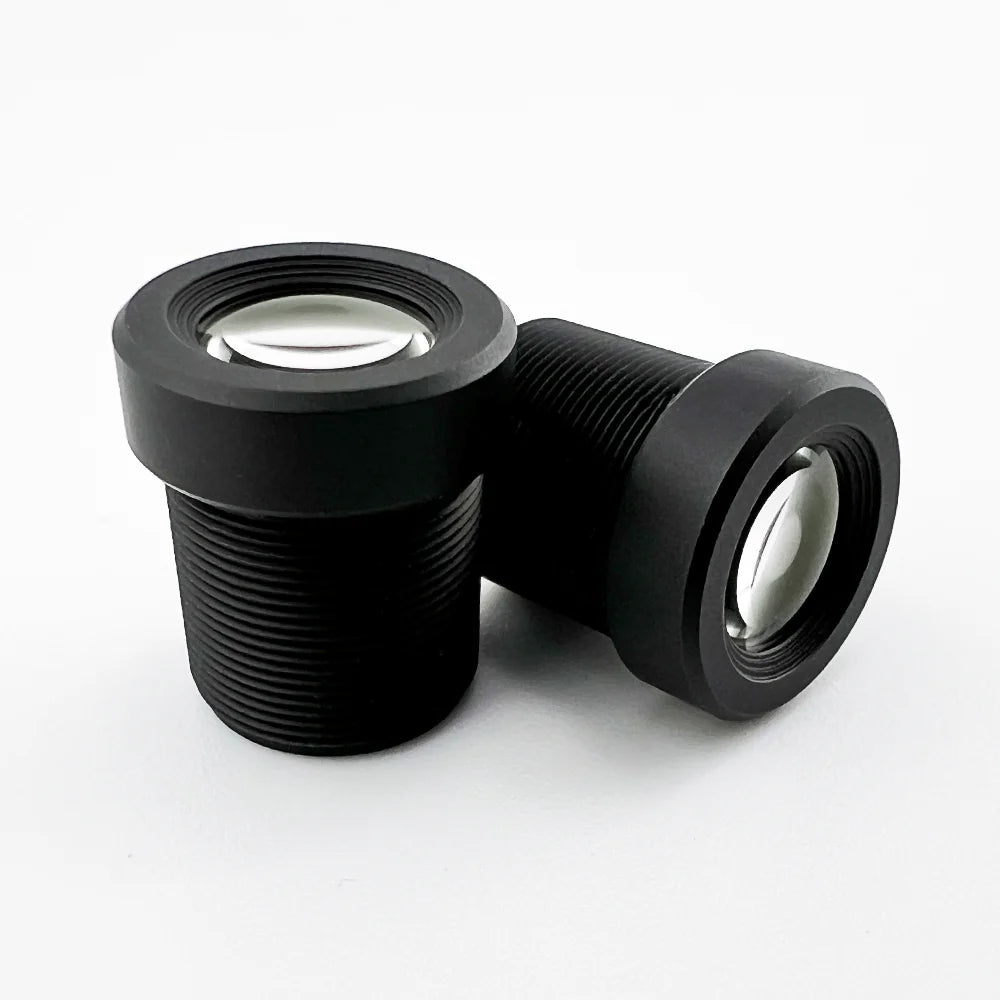

IR Corrected 16mm M12 Lens

The CIL161 is an IR Corrected 16mm M12 lens for up to 1/2" 5MP sensors such as the OX05B1S. The F/2.0 and IR correction make this a good lens for day/night imaging.

4.8 ( 50 reviews)

$39.00

$0.00

There are 9 units CIL161-F2.0-M12A650 (F/2.0 / M12A / With 650nm IRC Filter) in stock in the US.

There are 25 units CIL161-F2.0-M12ANIR (F/2.0 / M12A / Without Filter) in stock in the US.

Get Volume Pricing

.STP / Drawing Engineering Support

Lens Features

IR Corrected

Amazing for Day/Night Applications.

All-Glass All-Metal

Thermally stable performance for outdoor applications.

High Resolution

Suitable for up to 5MP+ 1/2" sensors.

Optical and Mechanical Specification Table

Lens Parameter	Performance Detail
Part Number	CIL161
Format Type	1/2"
EFL	15.6mm
F#	2.0 Fixed
Resolution	3-5MP (2.2um)
Field of View	28.8° @ 8.0mm Calculate for your sensor using our M12 Lens Calculator
Image Circle	8.0mm
Distortion	-0.3% Rectilin.
Weight	5g
IR Cut-Off Filter	P/N With: CIL161-F2.0-M12A650 P/N Without: CIL161-F2.0-M12ANIR
Construction	Glass

Mechanical Layout

Camera Mechanical Compatibility Table*

Camera/Mount	Compatibility
Commonlands Compatible Mount	CLA018
e-con Systems / Standard S-Mount	10mm-13mm tall mount
Allied Vision Alvium S-Mount	Yes
FLIR Blackfly S Board	Yes
iDS uEye LE	Rev1.1: Yes, Rev1.2: Yes
The Imaging Source M12	Yes
Basler Dart S-Mount	Yes

*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.

Click here to download .STP files and Mechanical Drawings
