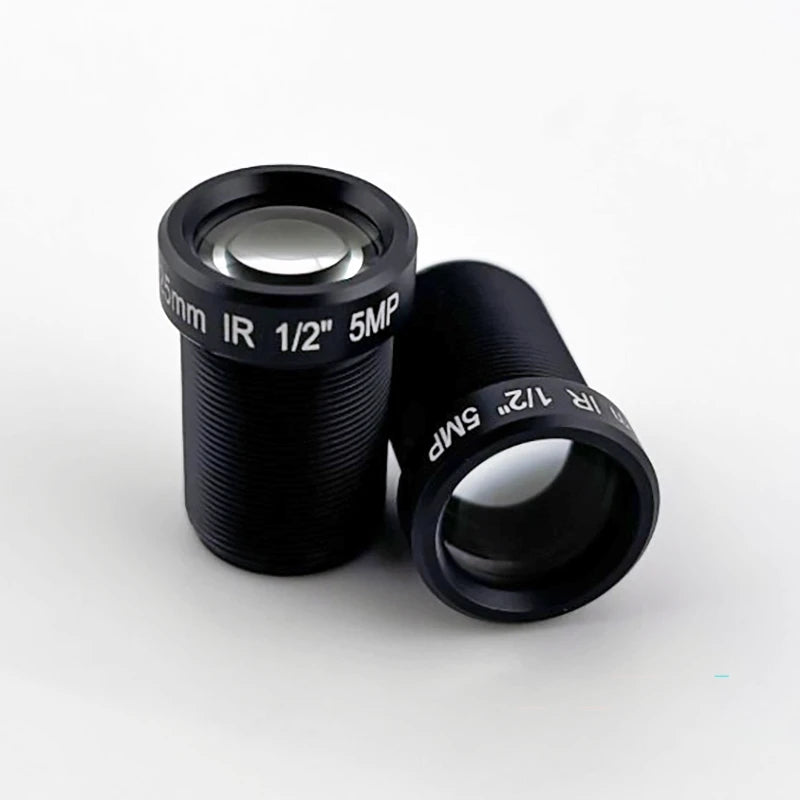

IR Corrected 5MP 25mm M12 Lens
IR Corrected 25mm M12 Lens 5MP
The CIL251 is an IR corrected 25mm S Mount lens (M12 Lens) for 3-5MP sensors up to 1/2.3" in format. The small 14mm diameter provides great SWAP. Contact us for filter customization services.
In stock. Orders before 12 PM PT ship same day
Lens Features
IR Corrected
Great SWAP
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL251 |
| EFL | 25.0 |
| F# | 2.4 |
| Resolution | 5MP, 2.2um |
| Field of View | 18.3° @ 8mm image circle. Calculate FoV for your sensor |
| Image Circle | 8mm as designed 8.8mm maximum |
| Distortion | -0.9% Rectilinear @ 8.0mm image circle |
| Weight | 5g |
| IR Cut-Off Filter | Optional |
| Construction | All Glass, Metal |
| Chief Ray Angle | ≤7.4° |
Mechanical Variants
| Variant | Description |
|---|---|
| M12A | No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel |
Mechanical Layout
Camera Mechanical Compatibility Table*
| Camera/Mount | Compatibility |
|---|---|
| Commonlands CLA024 | CLA024 |
| e-con Systems S-Mount | With Included Al6061 Lens Holder |
| Allied Vision Alvium S-Mount | Yes |
| FLIR Blackfly S Board | Yes |
| iDS uEye LE | Yes |
| The Imaging Source M12 | Yes |
| Basler Dart S-Mount | Yes |
*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.
Frequently asked questions
What cameras is the IR Corrected 25mm M12 Lens 5MP compatible with?
Check this product's mechanical drawing and selected variant for its interface, dimensions, and required clearances. Contact engineering@commonlands.com for compatibility with your camera or assembly.
What resolution does the IR Corrected 25mm M12 Lens 5MP support?
5MP, 2.2um
Does Commonlands ship from the United States?
Yes. Commonlands ships from San Diego, California. Orders placed before 12 PM PT ship same day. Contact engineering@commonlands.com for support.
Can I get volume pricing?
Standard price breaks start at quantities of 50, 100, 250, 500, 1k, 2.5k, 5k, 10k, and 25k. Click "Get Volume Pricing" above or contact sales@commonlands.com.
Are .STP files and mechanical drawings available?
