4.5mm M12 lens for up to 8MP 1/1.7" sensors such as AR0822

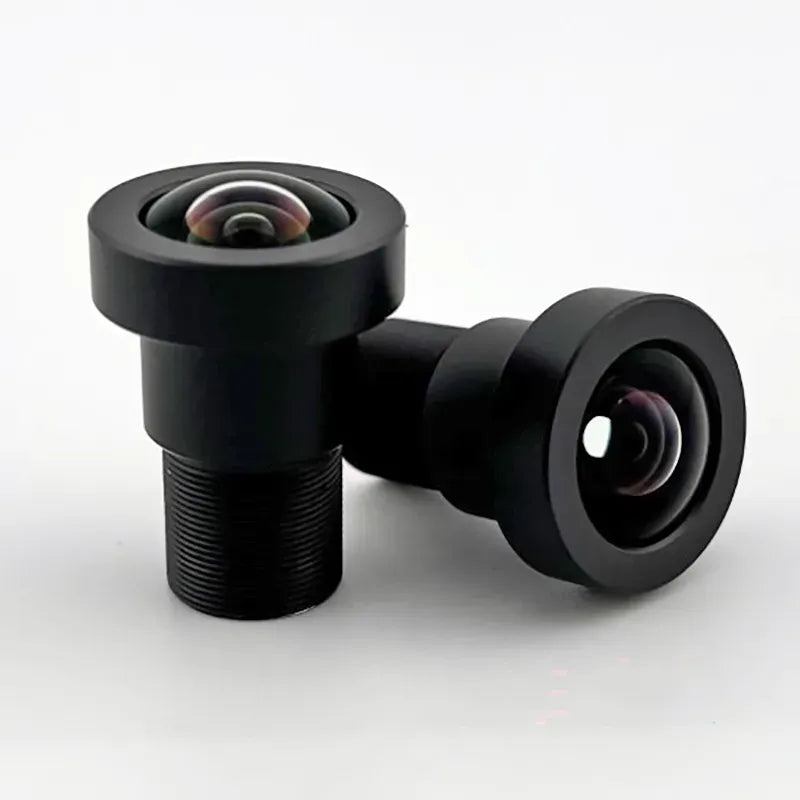

Low Distortion Glass 4.5mm M12 lens
The CIL047 is a 4.5mm F/2.1 all-glass all-metal low distortion M12 lens for up to 8MP 1/1.7" sensors such as AR0822.
In stock. Orders before 12 PM PT ship same day
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL047 |
| EFL | 4.5 |
| F# | 2.1 |
| Field of View | 93°@9.3mm Image Circle. Calculate FoV for your sensor |
| Distortion | -3.0% |
| Weight | 13g |
| IR Cut-Off Filter | Optional |
| Construction | All Glass, Metal |
Mechanical Variants
| Variant | Description |
|---|---|
| M12A | No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel |
Mechanical Layout
Frequently asked questions
What cameras is the Low Distortion Glass 4.5mm M12 lens compatible with?
Check this product's mechanical drawing and selected variant for its interface, dimensions, and required clearances. Contact engineering@commonlands.com for compatibility with your camera or assembly.
Does Commonlands ship from the United States?
Yes. Commonlands ships from San Diego, California. Orders placed before 12 PM PT ship same day. Contact engineering@commonlands.com for support.
Can I get volume pricing?
Standard price breaks start at quantities of 50, 100, 250, 500, 1k, 2.5k, 5k, 10k, and 25k. Click "Get Volume Pricing" above or contact sales@commonlands.com.
Are .STP files and mechanical drawings available?
