S-Mount Lens Holder for M12 Lenses

The CLA024-LCP is an M12x0.5 lens holder with 22mm hole spacing, 12mm height, and a 22mm x 22mm footprint. It accepts M1.7 mounting screws, so it fits most board-level cameras that use a 22mm bolt pattern.

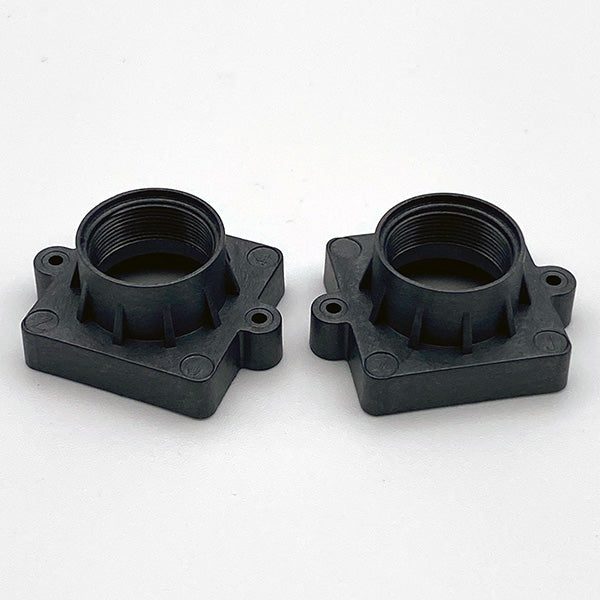

The holder is molded from low-CTE LCP, or liquid crystal polymer. That material stays dimensionally stable through temperature swings that can move an ABS or nylon holder enough to defocus a lens. If your system cycles between -20°C and +80°C, that stability matters.

The CLA024 works with Commonlands M12 lenses including the CIL344, CIL078, CIL056, and other standard M12x0.5 threaded optics. It is the straightforward choice when you are building a board-level imaging module around the 22mm pattern. Pair it with any of the 50+ M12 lenses at M12 lens collection

The 12mm height gives most wide-angle and standard M12 lenses enough back focal clearance. You should still verify working distance before ordering, especially if the camera stack is tight. Use the depth of field calculator at depth of field calculator to check the system.

Commonlands ships the CLA024 same day from San Diego for orders placed before 12 PM PST. At $4.50, it is one of the lowest-cost ways to integrate an M12 lens into a board camera assembly.
