25mm M12 Lens For Up To 1/1.7" Sensors such as IMX264 and IMX485

Name: Telephoto 26mm M12 Lens
Brand: Commonlands Optics
SKU: CIL260-F2.0-M12IR
Price: 59.00 USD
Availability: InStock

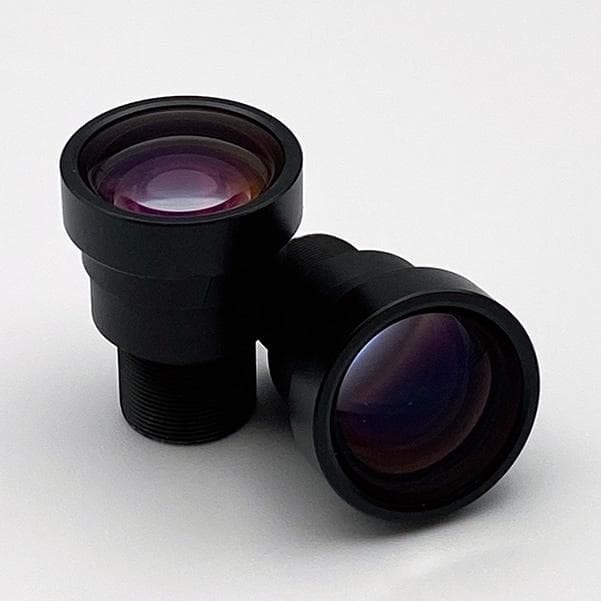

IR Corrected 25mm M12 Lens

The CIL250 is a 25mm M12 Lens (S-Mount Lens) for up to 1/1.7" 8MP sensors. The lens is IR Corrected, is F/2.0, and has a compact 30mm TTL.

$79.00

Selected Part Number is: CIL250-F2.0-M12A650

Request Volume Pricing

There are 22 units CIL250-F2.0-M12A650 (F/2.0 / M12A / With 650nm IRC Filter) in stock in the US.

There are 21 units CIL250-F2.0-M12ANIR (F/2.0 / M12A / Without Filter) in stock in the US.

We suggest our 25mm F/2.0 CIL250 instead of our CIL260
Higher Resolution, smaller, IR Corrected

Go to CIL250 webpage

25mm M12 Lens For Up To 1/2" Sensors such as IMX264 and IMX485

Telephoto 26mm M12 Lens

The CIL260 is a 26mm M12 lens which provides a 14° Horizontal Field of View on 1/2.3" type sensors.

$59.00

Selected Part Number is: CIL260-F2.0-M12IR

Request Volume Pricing

There are 2 units CIL260-F2.0-M12IR (F/2.0 / M12 / With IRC Filter) in stock in the US.

There are 52 units CIL260-F2.0-M12NIR (F/2.0 / M12 / Without Filter) in stock in the US.

Lens Features

Telephoto Field of View

A long 26mm EFL is suitable for machine vision and telephoto applications.

Optical and Mechanical Specification Table
Lens Parameter	Performance Detail
Part Number	CIL260
Format Type	1/1.8"
EFL	26mm
F#	2.0 Fixed
Resolution	5MP
Field of View	15° @ 6.6mm Calculate for your sensor using our M12 Lens Calculator
Image Circle	8.8mm
Distortion	<1%
Weight	15.3g
IR Cut-Off Filter	P/N With: CIL260-F2.0-M12A650 P/N Without: CIL260-F2.0-M12ANIR
Construction	All-Glass

Mechanical Variants
Variant	Description
"M12A"	No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel

Mechanical Layout

A 25mm M12 Lens for Telephoto applications

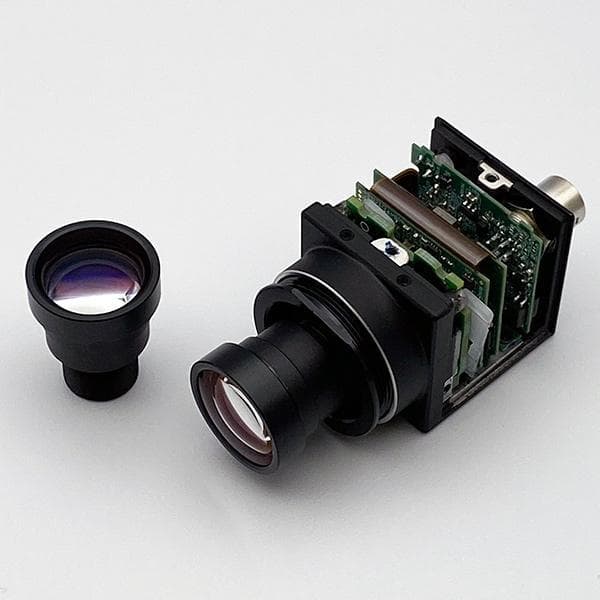

Camera Mechanical Compatibility Table*
Camera/Mount	Compatibility
Commonlands Compatible Mount	CLA019
e-con Systems Standard S-Mount	10mm-15mm tall holder
Allied Vision Alvium S-Mount	Yes
FLIR Blackfly S Board	Yes
iDS uEye LE	Rev1.1: Yes, Rev1.2: Yes
The Imaging Source M12	Yes
Basler Dart S-Mount	Yes

*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.
