How to Clean a Camera Lens or Coated Optics: The Air, Brush, and Drag-and-Drop Procedure
Cleaning coated glass is a risk-managed procedure, not routine maintenance. The wrong sequence turns dust into an abrasive that scratches a multi-layer coating, and a scratched element generally means replacing the lens.
Clean camera optics only when contamination is confirmed. Filtered compressed air first, an anti-static brush if particles remain, and a wipe dampened with 60/40 isopropyl alcohol and distilled water only for films or smears, drawn once across the glass in one direction (drag and drop). We never rub in circles, and keep acetone off these lenses: they use coated glass elements, and many designs also include cemented groups or plastic elements.
When should you clean a camera lens?
Clean a lens when contamination is measurably affecting image quality, or when reactive residue such as fingerprints, oil, or salt spray sits on a coating where it can etch or stain. Do not clean simply because dust is visible: fine particulate on the front element covers a very small fraction of the aperture and usually has little measurable effect on captured images.
Inspect under raking light, a bright, narrow source held nearly parallel to the surface so contamination scatters toward your eye against a dark background. If particles are loose and the image passes every quality metric, use air and stop. Escalate to contact cleaning only when one of these is true:
- Oily films or smears are producing flare or measurable contrast loss.
- Particles persist after blowing and produce scatter or veiling flare on the front element, or shadow artifacts on the sensor window or a near-sensor filter.
- The image fails a reference comparison against a clean baseline.
Oily films, fingerprint residue, and outgassing deposits (volatiles from adhesives, foams, and cable jackets that condense on the optic) are what need solvent. For what the coating stack protects against, the Commonlands ruggedized machine vision lenses guide goes deeper.

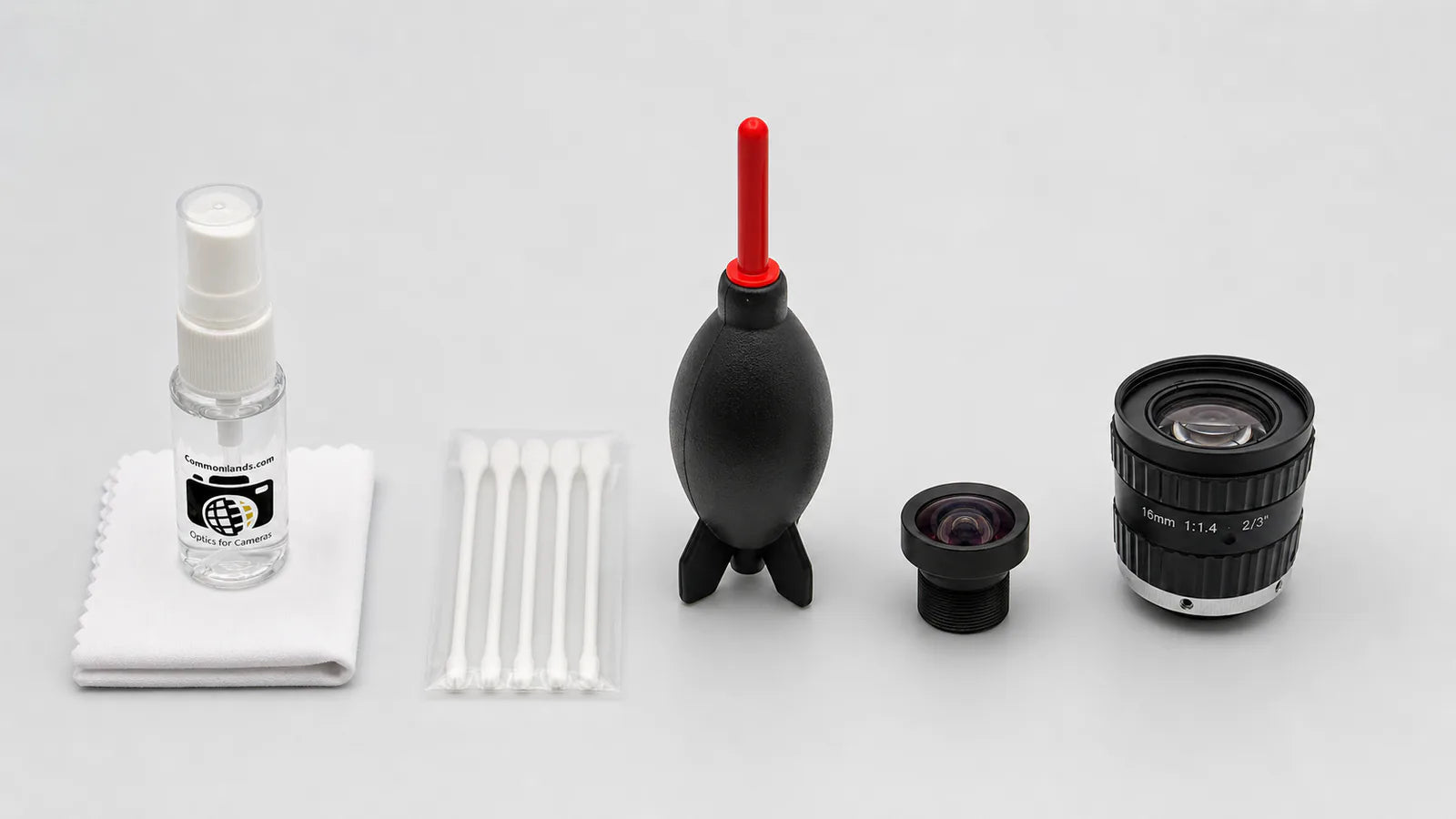

What belongs in a camera lens cleaning kit?
- Filtered compressed air: a canned duster used upright or an oil-free shop line through an inline filter, plus a bulb blower for travel.
- An anti-static lens brush dedicated to optics only. Do not share it between components or use one that has touched an oily surface.
- Optical-grade lint-free wipes, single-use only.
- Single-use sensor swabs sized to the sensor format for cover glass. They are not interchangeable with lens wipes.
- The solvent: a 60/40 mix of isopropyl alcohol and distilled water in a dropper bottle, the mix Commonlands uses on its own lenses. The water slows evaporation so the wipe carries residue away.
- Nitrile gloves to stop skin oil transfer during handling.
- A clean work mat for a stable, uncontaminated surface.
Store consumables sealed and keep wipes and swabs out of dusty air until use.
What is the step-by-step lens cleaning procedure?
Air, then brush, then solvent, stopping as soon as inspection shows the surface is clean. The order is fixed; escalate to the next tool only when contamination remains.
- Power down the camera before removing the lens or beginning inspection. Use ESD-safe handling for any exposed camera module.
- Inspect under angled light before touching anything, and map where particles sit versus where smears are; that map decides which steps you need.

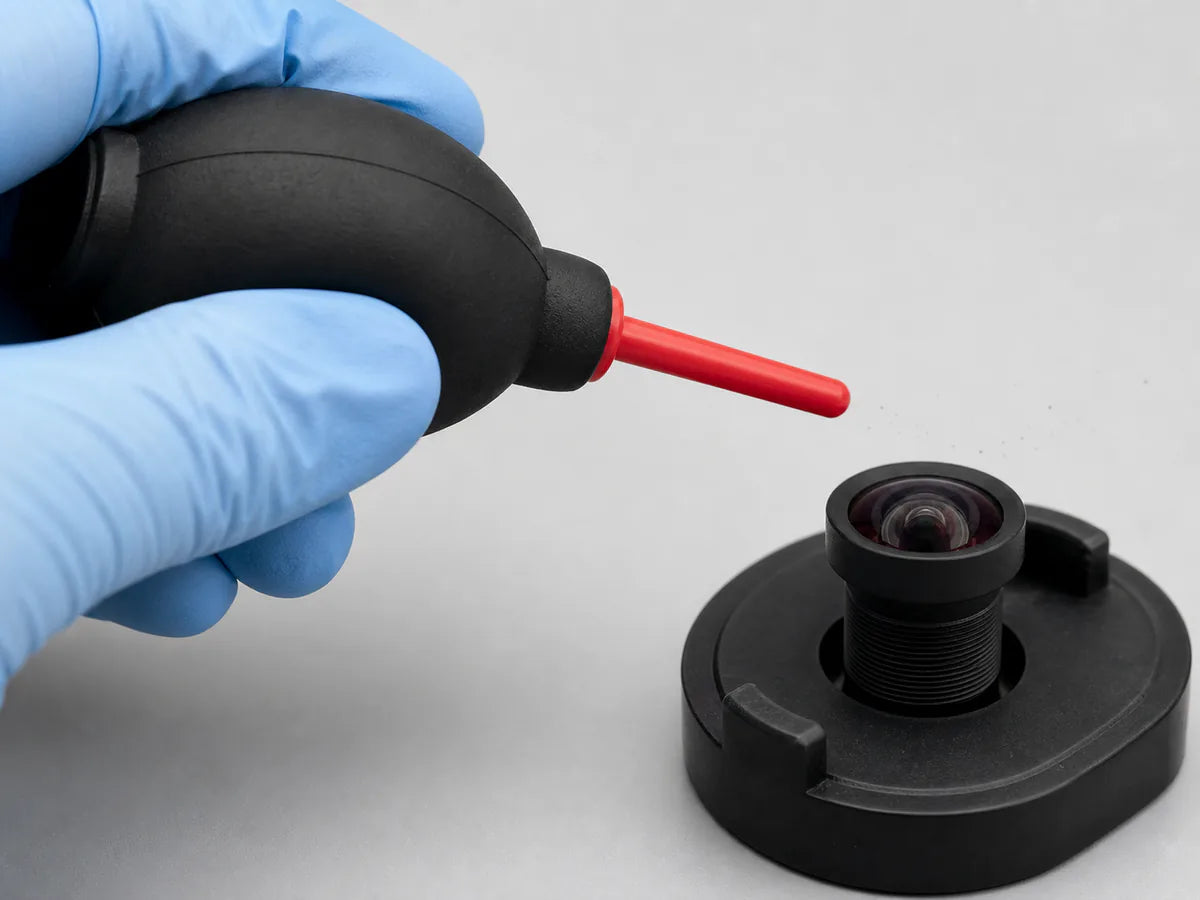

- Blow off loose particles with filtered compressed air. Hold a canned duster upright, or use an oil-free filtered line, nozzle 20cm to 30cm from the glass, in short bursts so grit lifts off instead of being driven into the coating or barrel threads. Tilt the optic so particles fall away. If inspection is now clear, skip to step 7.
- Only if particles survived blowing, brush them off. Use single one-directional strokes, never circular scrubbing, then blow again to clear brush fibers. Stop if inspection is clear.

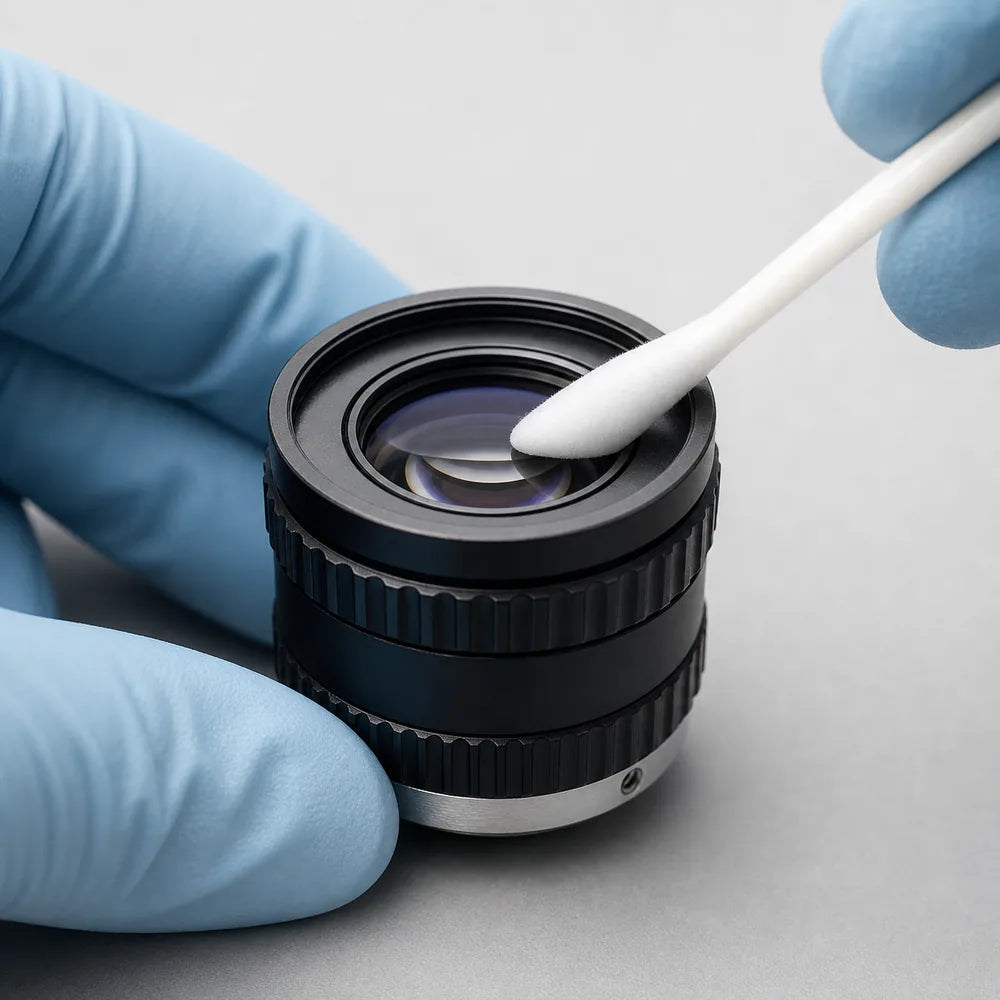

- Only if a film, smear, or fingerprint remains, use drag and drop. Put two or three drops of the 60/40 IPA and distilled water mix on a fresh lint-free wipe, never on the optic. Lay the wipe flat at one edge of the glass, holding a corner you will not drag, and draw it slowly across in one direction and one pass: the solvent film pushes residue ahead of the wipe and evaporates behind it, and you drop the wipe as it clears the far edge. Never scrub in circles, which grinds any remaining particle into the coating. A second pass gets a new wipe.
- Let solvent flash off completely before reassembly, since solvent trapped under a threaded barrel wicks into element edges.
- Reinspect under angled light for streaks or residue.
- Recheck the image against a baseline target to confirm contrast and flare are within limits.
Dos and don'ts for coated optics and housings
The highest-consequence rules Commonlands applies to coated camera optics.
| Do | Don't |
|---|---|
| Start with a blower before any contact step. | Start with a dry wipe while dust is still on the optic. |
| Apply solvent to the wipe or swab, not to the optic directly. | Flood the optic surface with solvent, risking wicking into the barrel. |
| Use a 60/40 mix of isopropyl alcohol and distilled water, or a fluid the lens maker has approved. | Use pure 99% IPA (it streaks), household glass cleaner, tap water, or an unverified solvent. |
| Draw the wipe once across the glass in one direction and discard it (drag and drop). | Rub in circles or spirals, reuse a wipe, or use acetone (prohibited across the whole Commonlands catalog). |
| Blow with filtered compressed air held 20cm to 30cm away in short bursts. | Blast from close range, tilt a canned duster, or use an unfiltered shop line that carries oil and water. |
What is the safest way to clean an image sensor window?
Check the camera manufacturer's guidance first: some machine vision cameras prohibit wet-swabbing the cover glass and require authorized service when air fails.
Sensor cover glass sits directly in front of the pixel array, so a particle or smear there casts a visible shadow in captured frames, especially at smaller apertures, and scratching the window permanently damages the camera.
- Blow first. Hold the camera face-down and use filtered compressed air or a bulb blower in several short bursts, so dislodged particles fall out of the chamber. Blowing alone often clears it.
- Inspect in raking light to confirm whether contamination remains.
- If residue remains, use a single-use sensor swab sized for the sensor format. Apply the 60/40 IPA and distilled water mix to the swab tip, not the glass.
- Draw the swab across the window in one direction, the same drag-and-drop motion as on a lens, held flat with even, light pressure rather than tilted onto one edge, since tilting is what streaks.
- Flip to the clean side for a second pass only if residue remains, then discard the swab. Never reuse it.
If contamination appears to be behind the cover glass, on the pixel array itself, the camera needs professional service or replacement. It cannot be addressed with module-level cleaning.
For sensor window geometry and format dimensions, see the Commonlands CMOS sensor size guide.
Do sealed or IP-rated lenses still need cleaning?
Yes, and the rating claims less than it looks. An IP code records how the tested lens variant, as mounted, resisted one standard's dust and water exposures: IEC 60529 for IP67, ISO 20653 for IP6K9K (industry shorthand IP69K). It is not evidence against internal condensation, chemical attack, deposits, or steam, and it says nothing about the camera behind the lens.
Sealing does tend to keep contamination on the exposed front element instead of letting it migrate between internal groups. That surface still collects dust, condensation, and process residue, and needs the same inspection-driven cleaning described above.
A hydrophobic coating helps in washdown and outdoor use: water beads and rolls off instead of sheeting into a film, so fewer water spots form between cleanings.
Selected lenses across both the M12 and C-mount families, not the full catalog, carry IP-rated sealing and hydrophobic coatings, and the rating often attaches to a specific mechanical variant (the CIL034 M12A is IP67-rated; the M12B of the same optics is not). Verify on the product page; the IP rating guide covers the scale and sealing methods.
How do you troubleshoot haze, flare, and repeat contamination?
Work through this symptom-to-surface map before pulling a lens.
Haze and contrast loss
Uniform haze, a contrast reduction across the full frame, has more than one cause. A thin film on an accessible surface is the one cleaning fixes: skin oils, outgassing, oil mist, or residue from an incomplete previous cleaning. Internal fog, coating damage, fine scratches, degraded cement, and bulk scatter look similar from the outside and do not respond to solvent.
Inspect under raking light from both sides first. If the haze sits on an outer surface, solvent clears it; if not, check the enclosure window, filter glass, and sensor cover glass, then treat the lens as a service case.
Flare from localized contamination
Point-source flare, a scatter halo or veiling glare around a bright target, can come from contamination anywhere in the illuminated beam footprint on the front element or filter window.
How much a particle costs depends on its size and where it sits relative to the pupils and the focal plane, not on a single ranking. Contamination near a pupil spreads a diffuse veil across every field point, while contamination on the sensor cover glass sits close enough to focus that a speck casts a localized shadow, often the more visible of the two, and one that deepens as you stop down.
If flare appears only at specific illumination angles, suspect a contaminated enclosure window rather than the lens, since scattered-light geometry changes with the angle of the dominant source.
Repeat contamination
If an optic contaminates rapidly after each cleaning, the source is environmental. Investigate:
- Enclosure design. If the lens is exposed to airborne particulate or mist, improve sealing or add an AR-coated protective window.
- Holder and focus lock. A loose holder or a lens that drifts focus under vibration forces repeated re-handling, and each handling event can introduce contamination.
- Handling protocols. Cap lenses during downtime and assembly.
- Outgassing sources. Identify adhesive, foam, or cable material near the optical path that could deposit a film; prefer low-outgassing materials.
Lens cleaning tools compared
Commonlands stocks the CLA901-CLK cleaning kit and the CLA902-AIR bulb blower; a generic substitute exists for each.
| Rank | Tool | What it does | When a generic substitute is fine | Link |
|---|---|---|---|---|
| 1 | Camera Lens Cleaning Kit (CLA901-CLK) | Lint-free cloth and optics-safe fluid for the solvent step on coated front elements, plus a miniature screwdriver and screws. | Stock isopropyl alcohol, distilled water, and fresh lint-free wipes? Mixed 60/40, they are a field-expedient substitute for the solvent step when the kit is not on hand. | Camera lens cleaning kit |
| 2 | Camera Sensor Air Blaster (CLA902-AIR) | Manual rubber bulb blower; lifts loose dust off lenses, sensor windows, and filters with room air, at lower force than a compressed line. | Any oil-free rubber bulb blower does the same job, and filtered compressed air (a canned duster held upright, or an oil-free filtered shop line) is the faster equivalent on the bench. | Sensor air blaster |
Two mounting accessories cut how often a lens gets handled, the cheapest way to avoid contamination: the M12 lens holder with 20mm spacing (CLA020-PC) and the M12 focus lock nut ring. Both ship same-day on orders placed before 12 PM PT.
A protective filter over the front element gives you a window you can clean or replace instead of the lens. The cost is two more air-glass surfaces in the optical path, each one a fresh reflection, so specify an AR-coated window rather than plain glass and check flare performance after you add it. The stray light guide covers what those extra surfaces do to veiling flare and ghosting.
Frequently asked questions
Commonlands assembles camera modules in a Class 1000 cleanroom in San Diego; field cleaning follows the same contact-minimizing rules.
How do you clean a camera lens without scratching it?
Air first, brush second, solvent last, and stop as soon as the glass is clean. Only if a film or smear remains, dampen a fresh lint-free wipe with a 60/40 mix of isopropyl alcohol and distilled water and draw it once across the surface in one direction (drag and drop), then discard it. We never rub in circles or drag a dry wipe across dust-covered glass.
Is isopropyl alcohol safe for coated optics?
Yes. The 60/40 mix of isopropyl alcohol and distilled water is what Commonlands uses on its own coated glass, chosen for hand cleaning in the field rather than offered as a universal law. Pure 99% IPA flashes off fast enough to dry in streaks and leave dissolved residue as rings, and it will not lift water-soluble deposits such as salts; labs with a controlled process do use it.
The water fraction slows evaporation so the wipe carries contaminants away, and distilled water avoids the mineral spotting tap water leaves. For hydrophobic or specialty AR coatings, check the manufacturer's solvent guidance first.
Which solvents does Commonlands rule out on its lenses?
Acetone, prohibited across the whole catalog as a blanket policy rather than per-SKU chemistry. Commonlands lenses use coated glass elements; many designs also include cemented groups or plastic elements. Acetone attacks many optical cements, plastics, and housing finishes, it wicks past retaining rings into the barrel, and verifying compatibility SKU by SKU is not worth the risk. Labs cleaning bare uncoated glass do use reagent acetone; that case does not apply here.
Also avoid household glass cleaners, whose ammonia and surfactants leave films. Default to the 60/40 mix or a fluid the lens maker approved.
How often should machine vision lenses be cleaned?
Clean on condition, not on a calendar. In a sealed enclosure the interval can be months; in an open-air line with particulate or oil mist, inspect weekly and clean only when contamination is confirmed by an image quality change, a failed inspection metric, or visible residue.
Can you use compressed air to clean a camera lens?
Yes, and it is the recommended first step, because it removes loose particles with no contact. Two rules keep it safe: use a filtered source (a canned duster held upright, or an oil-free shop line through an inline filter) so no propellant, oil, or water reaches the glass, and hold the nozzle 20cm to 30cm away in short bursts so grit lifts off instead of being driven into the coating. A bulb blower does the same job at lower force.
Get help with a contamination or image quality issue
Commonlands manufactures M12, C-mount, and M8 lenses for machine vision and embedded camera systems. Send our San Diego engineering team a description of the contamination or image quality symptom. Cleaning kits, blowers, holders, and lock rings ship same-day on orders placed before 12 PM PT.
