Sony image sensor · STARVIS
IMX482 sensor specifications and
compatible M12 lenses & C-mount lenses
IMX482 is a Sony 1/1.2-inch rolling-shutter CMOS image sensor from the STARVIS low-light family. Large 5.8 um pixels drive its 1920x1080, 2.1 MP array at up to 90 fps over MIPI CSI-2, in color across a 12.78 mm diagonal that favors sensitivity over resolution. Commonlands matches M12 Lenses to its image circle and supplies the calculated horizontal, vertical, and diagonal field of view.
IMX482 specifications
| Part number | IMX482 |
|---|---|
| Manufacturer | Sony |
| Family | STARVIS |
| Resolution | 1920x1080 (2.1 MP) |
| Optical format | 1/1.2" |
| Active area | 11.14 × 6.26 mm |
| Sensor diagonal | 12.78 mm |
| Pixel size | 5.8 µm |
| Shutter | Rolling |
| Max frame rate | 90 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: Sony IMX482 product page
Compatible Commonlands lenses for the IMX482. Field of View calculated with Distortion.
Each field of view below is calculated for the IMX482 active area (11.14 × 6.26 mm) using our MCP server and Field of view calculator. The rectilinear formula FoV = 2 × arctan(dimension ÷ (2 × focal length)) is incorrect for many lenses as it doesn't include distortion. Coverage shows whether the lens image circle covers the 12.78 mm sensor diagonal. Fisheye and f-theta lenses do not follow the rectilinear formula, so their entries link to the product page for the mapped field of view.
Engineering picks for the IMX482

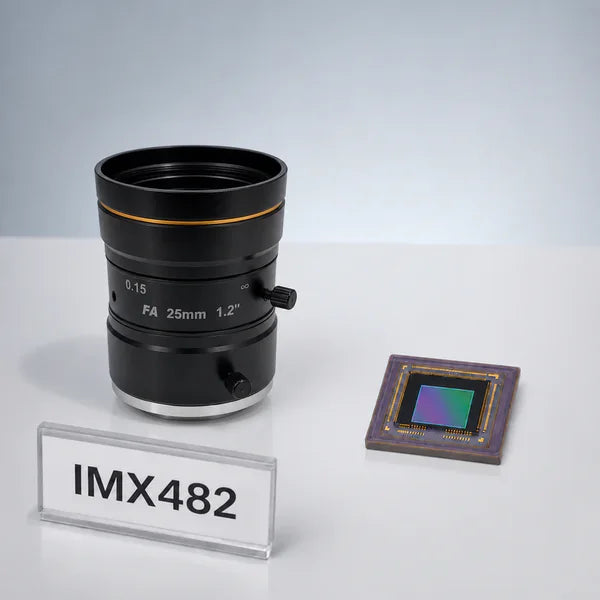

- Best ~30° HFoV: 25mm C-Mount Lens (CIL554) (25 mm, f/2.6). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX482: 25° H × 14° V (29° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~60° HFoV: 8.5mm C-Mount Lens (CIL508) (8.5 mm, f/2.4). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX482: 69° H × 41° V (77° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~120° HFoV: 4.9mm C-Mount Lens (CIL505) (4.9 mm, f/2.2). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX482: 136° H × 74° V (159° diagonal); image circle covers the full sensor; verified 2026-07-02.
Commonlands offers 9 lens options for the IMX482: M12 Lenses and C-Mount Lenses from 1.3 mm to 75 mm focal length, spanning 8° to 184° horizontal field of view on the IMX482 active area.
| Commonlands Lens | Focal Length | Mount | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.3mm M12 Lens (CIL293) | 1.3 mm | M12 | f/2.2 | 184° | 184° | 184° | Circular image |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-mount | f/2.2 | 136° | 74° | 159° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-mount | f/2.4 | 69° | 41° | 77° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-mount | f/2.8 | 50° | 29° | 56° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-mount | f/2.8 | 38° | 22° | 44° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-mount | f/2.6 | 25° | 14° | 29° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-mount | f/2.6 | 18° | 10° | 21° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-mount | f/2.8 | 13° | 7° | 15° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-mount | f/3 | 8° | 5° | 10° | Covers |
Coverage key: covers = lens image circle ≥ sensor diagonal; crops = image circle smaller than the diagonal (expect vignetting at the corners); verify = image circle not published for this lens — ask our engineers to confirm coverage.
How to choose a lens for the IMX482
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX482. Confirm the lens image circle covers the 12.78 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 2.1 MP or higher so it resolves the 5.8 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a MIPI camera module around the IMX482? Commonlands can provide customized MIPI modules with our lenses; MoQs apply. Commonlands provides M12 lenses and C-mount optics and ships from San Diego, with same-day shipping for in-stock lenses ordered by 12 PM PST. We also assemble and align lens-to-sensor modules. Talk to an applications engineer.
