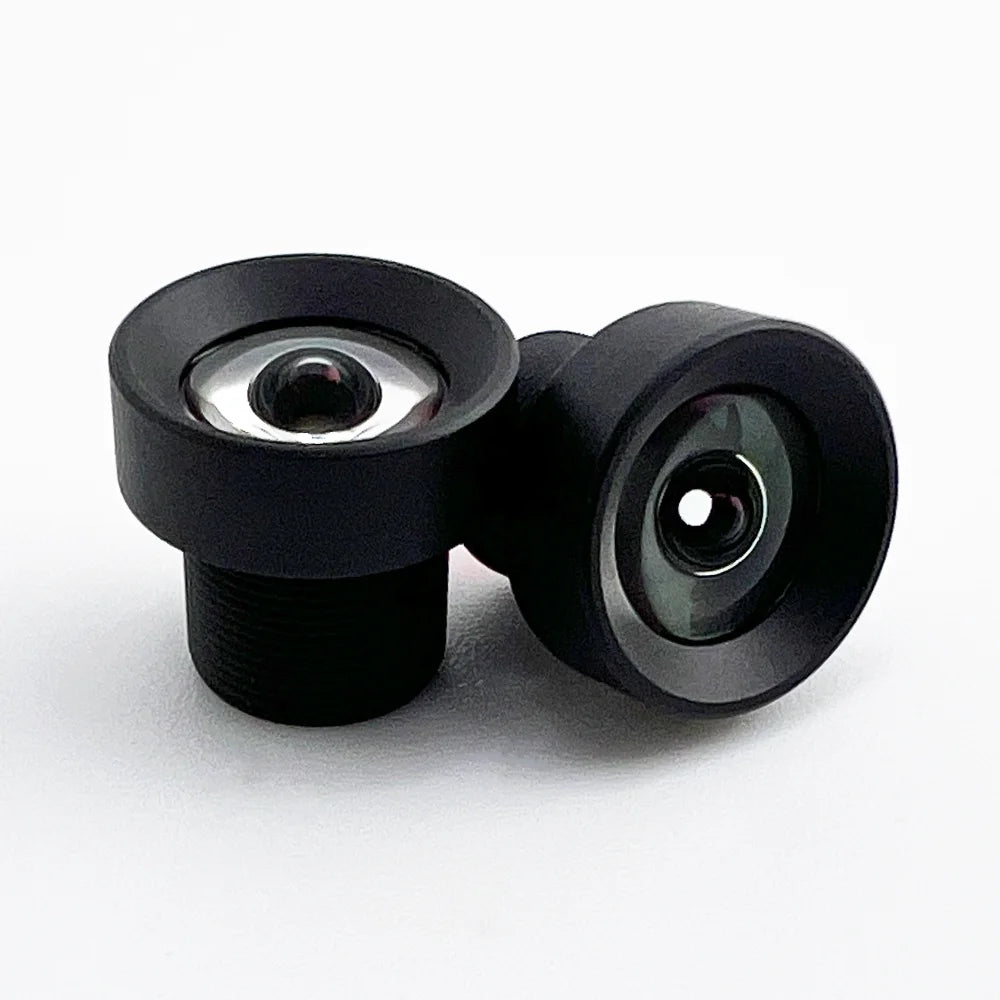

Lens Features

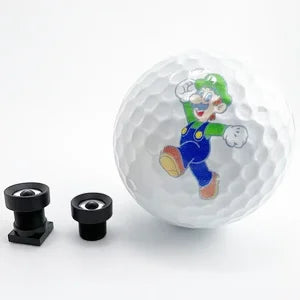

Tiny Form Factor
A small size for lightweight or hidden applications.
Low Distortion
A low amount of distortion makes objects appear normal.
Compact Size
A short TTL of 10.9mm is ideal for weight and size-constrained applications.
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL820 |
| Format Type | 1/4" |
| EFL | 2.1mm |
| F# | 2.7 Fixed |
| Resolution | 1MP-2MP |
| Field of View | 108° @ 4.5mm image circle
Calculate for your sensor using our M12 Lens Calculator |
| Image Circle | 4.5mm |
| Distortion | +16% F-Θ |
| Weight | 1.0g |
| IR Cut-Off Filter | P/N With: CIL820-F2.7-M07A650 |
| Construction | 2G2P, AL6061 |

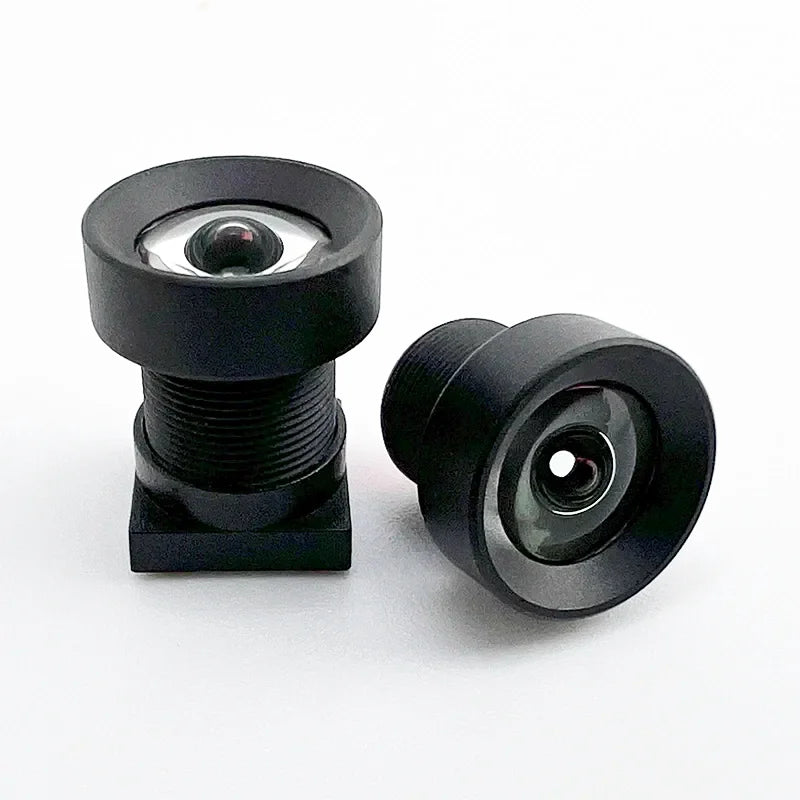

Mechanical Variants
Mechanical Layout
Camera Mechanical Compatibility Table*
| Camera/Mount | Compatibility |
|---|---|
| CLA022 | |
| With CLA021 | |
| No | |
| No | |
| Rev1.1: No, Rev1.2: No | |
| The Imaging Source | No |
| D3 Camera Modules | Yes |
*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.
