Low Distortion IR Corrected 1.8mm Wide-Angle M12 Lens for Surveillance
Low Distortion IR Corrected 1.8mm M12 Lens

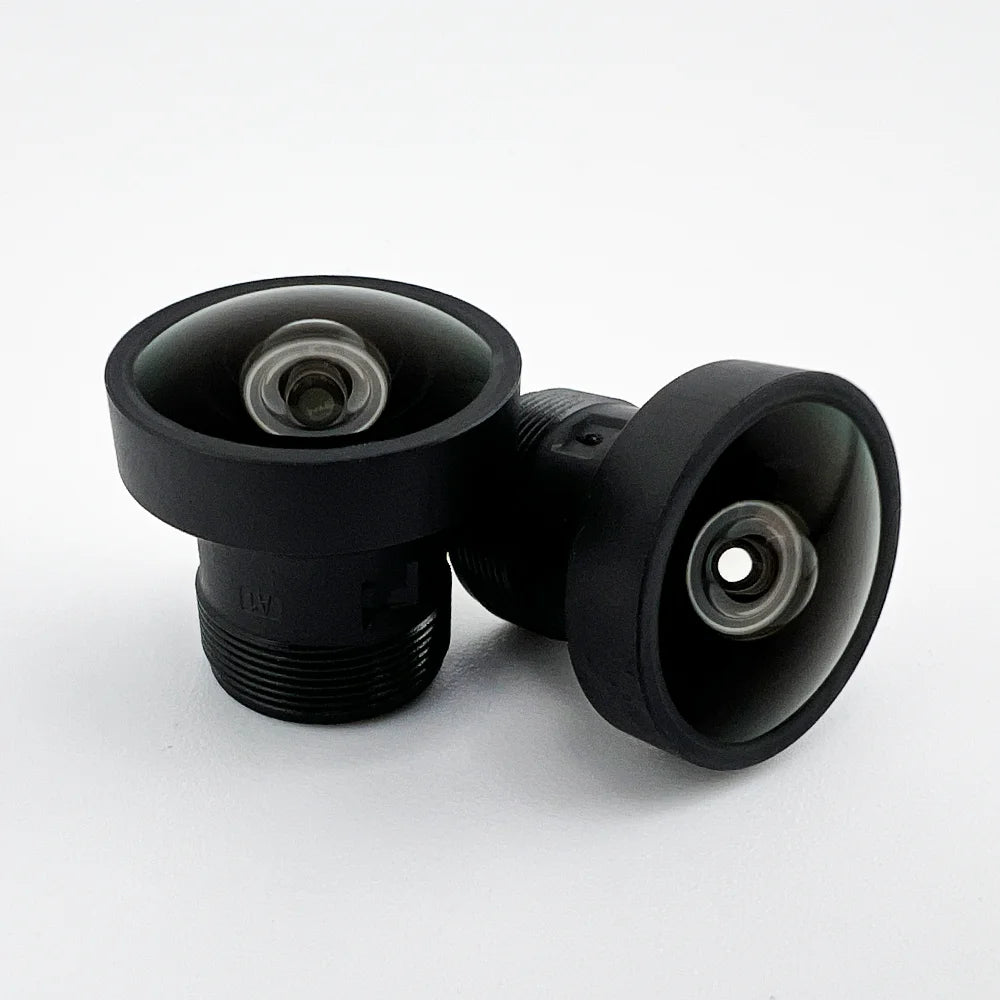

The CIL019 is a 1.8mm F/1.6 Wide Angle IR Corrected S-Mount with Low Distortion. The lens is suitable for up to 5MP 1/2.7" sensors such as the IMX662. The optical characteristics make this lens ideal for surveillance applications. The barrel is plastic and the lens cannot be ingress protected; filters must also be mounted within the lens holder.
In stock — orders before 12 PM PST ship same day
Lens Features
Wide FoV
One of the widest angle low distortion M12 lenses on the market.
IR Corrected
Less than 7µm MBFL shift from VIS to 850nm for precise IR correction.
Low Distortion
Low distortion keeps objects looking natural. Straight lines stay straight.
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL019 |
| EFL | 1.8 |
| F# | 1.6 |
| Resolution | 2-3MP |
| Field of View | 87° — Calculate FoV for your sensor |
| Image Circle | 6.6mm |
| Distortion | +48% F-θ |
| IR Cut-Off Filter | Built into Holder |
| Construction | 2G5P |
Mechanical Variants
| Variant | Description |
|---|---|
| M12P | No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap, Plastic Barrel |

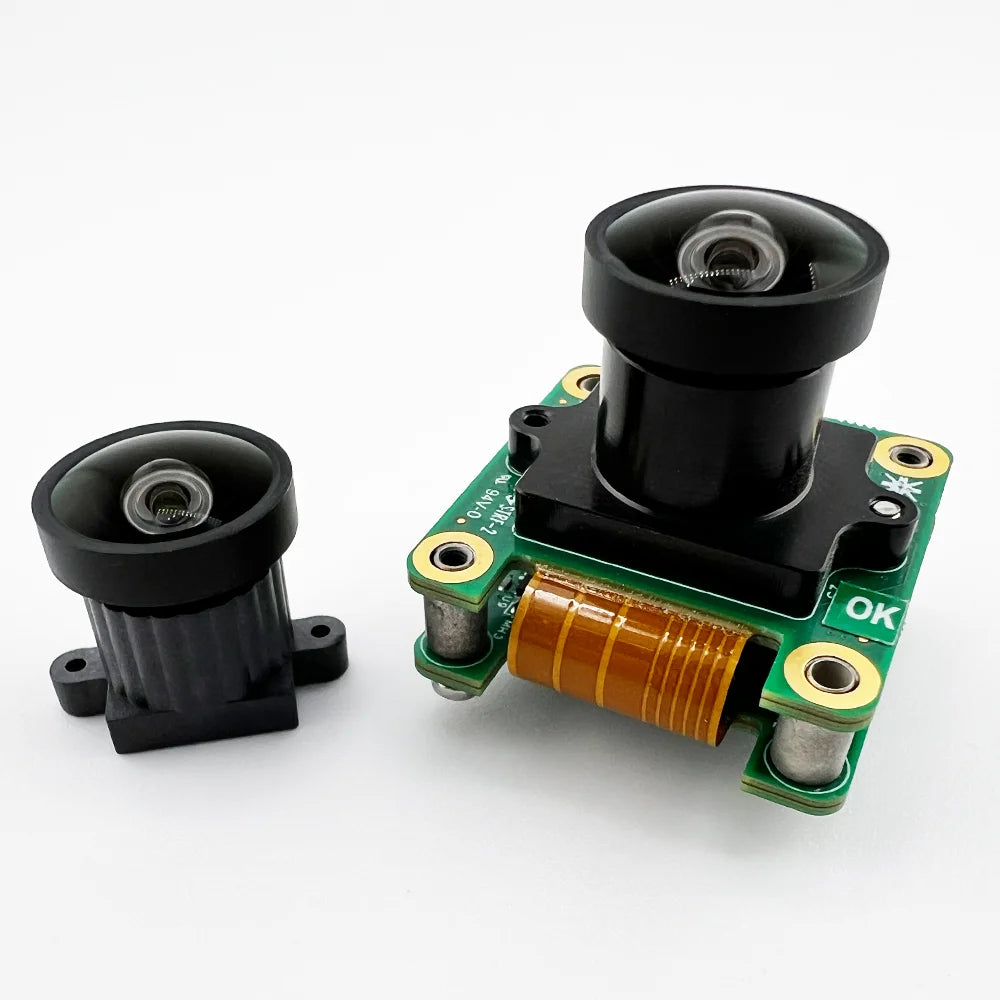

Mechanical Layout
Camera Mechanical Compatibility Table*
| Camera/Mount | Compatibility |
|---|---|
| Commonlands CLA018 | CLA018 |
| e-con Systems S-Mount | 9mm-13mm tall holder |
| Allied Vision Alvium S-Mount | Yes |
| FLIR Blackfly S Board | Yes |
| iDS uEye LE | Rev1.1: Yes, Rev1.2: Must use PN ending C-NO |
| The Imaging Source M12 | Yes |
| D3 Camera Modules | Contact D3 Engineering |
*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.
Frequently asked questions
What sensors is the CIL019 1.8mm IR corrected M12 lens compatible with?
The CIL019 is for 1/2.7″ sensors at 2-3MP, including the Sony IMX662. Its 6.6mm image circle fully covers that format.
What IR correction performance does the CIL019 provide?
It keeps focal shift under 7 microns MBFL from visible to 850nm NIR. Day/night cameras that switch between a 650nm cut filter and open NIR mode stay sharp without mechanical refocusing.
Why does the CIL019 spec show +48% F-theta if it is called low distortion?
F-theta distortion and TV distortion are different measurements. The +48% F-θ value describes how angular field position maps to image height, while the low-distortion claim refers to conventional TV distortion, which is comparatively low for a wide-angle lens at this focal length.
Can the CIL019 be used with external optical filters?
Yes, but the filter has to sit in the lens holder rather than inside the lens body. The M12P plastic barrel does not support internal filter installation.
Is the CIL019 M12P variant ingress protected?
No. The M12P variant has no ingress protection, so outdoor or humid deployments need an external housing or sealed enclosure.
What lens holder does the CIL019 require?
The CIL019 needs a standard 9mm-13mm tall M12x0.5 lens holder. The Commonlands CLA018 is one compatible mount, and iDS uEye LE Rev1.2 users must order the part number ending in C-NO.
