6mm M12 lens for 1/1.6" to 2/3" sensors such as IMX676 and IMX490
Two Thirds Inch 6mm M12 Lens

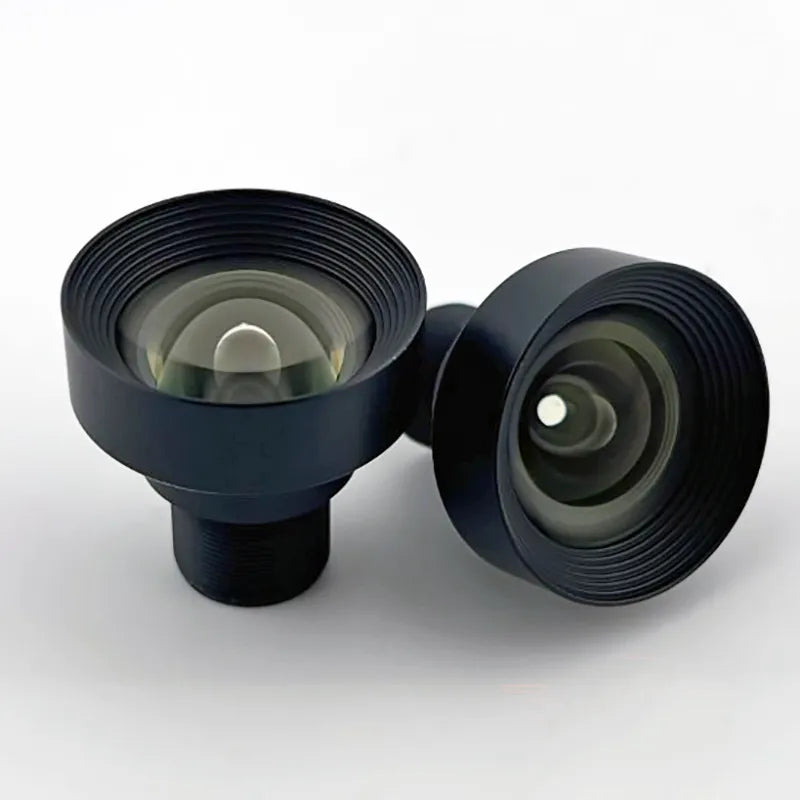

The CIL064 is a large format two thirds inch 6mm M12 lens for up to 6MP+ sensors such as IMX676. The compact size and large image circle make this lens ideal for 3-5MP global shutter camera systems with demanding SWAP requirements. For higher performance applications we recommend our CIL561 C-mount lens.
Lens Features
Large Format
Large 11mm image circle for up to 2/3 5MP and 1/1.6 8MP
Great SWAP
M12 form factor with a large image circle
Optical and Mechanical Specification Table
| Lens Parameter | Performance Detail |
|---|---|
| Part Number | CIL064 |
| EFL | 6.0 |
| F# | 2.9 |
| Resolution | 6MP, 3um |
| Field of View | 86°@11mm Im.Circ. Calculate FoV for your sensor |
| Image Circle | 11.0mm |
| Distortion | -0.02 |
| Weight | 14g |
| IR Cut-Off Filter | Optional |
| Construction | All Glass, Metal |
Mechanical Variants
| Variant | Description |
|---|---|
| M12A | No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel |

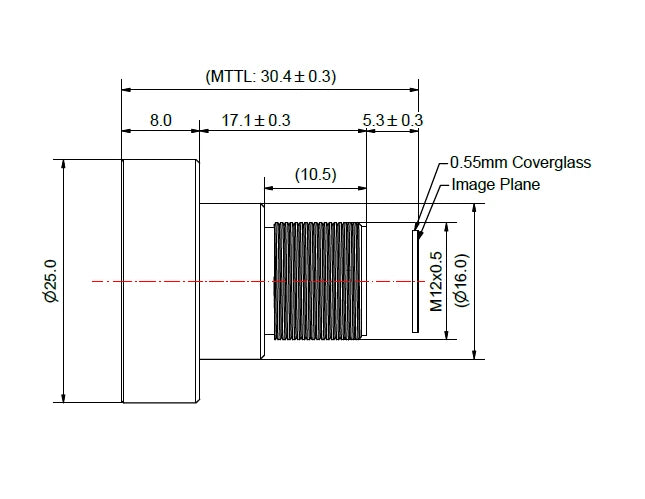

Mechanical Layout
Camera Mechanical Compatibility Table*
| Camera/Mount | Compatibility |
|---|---|
| Commonlands CLA024 | CLA024 |
| e-con Systems S-Mount | With Included Al6061 Lens Holder |
| Allied Vision Alvium S-Mount | Yes |
| FLIR Blackfly S Board | Yes |
| iDS uEye LE | Yes |
| The Imaging Source M12 | Yes |
| Basler Dart S-Mount | Yes |
*Mechanical compatibility only, assuming the standard M12x0.5 lens mount provided by the camera manufacturer. Please check optical compatibility separately.
Frequently asked questions
What cameras is the Two Thirds Inch 6mm M12 Lens compatible with?
The Two Thirds Inch 6mm M12 Lens uses a standard M12x0.5 thread. Mechanical compatibility varies by camera manufacturer, so check the compatibility table above. Contact engineering@commonlands.com for specific camera fit guidance.
What resolution does the Two Thirds Inch 6mm M12 Lens support?
6MP, 3um
Does Commonlands ship from the United States?
Yes. Commonlands ships from San Diego, California. Orders placed before 12 PM PST ship same day. Contact engineering@commonlands.com for support.
Can I get volume pricing?
Standard price breaks start at quantities of 50, 100, 250, 500, 1k, 2.5k, 5k, 10k, and 25k. Click "Get Volume Pricing" above or contact sales@commonlands.com.
Are .STP files and mechanical drawings available?
