Sony IMX250 · 5.0MP 2/3" global-shutter CMOS image sensor
IMX250 Sensor Specifications & Compatible M12 and C-Mount Lenses

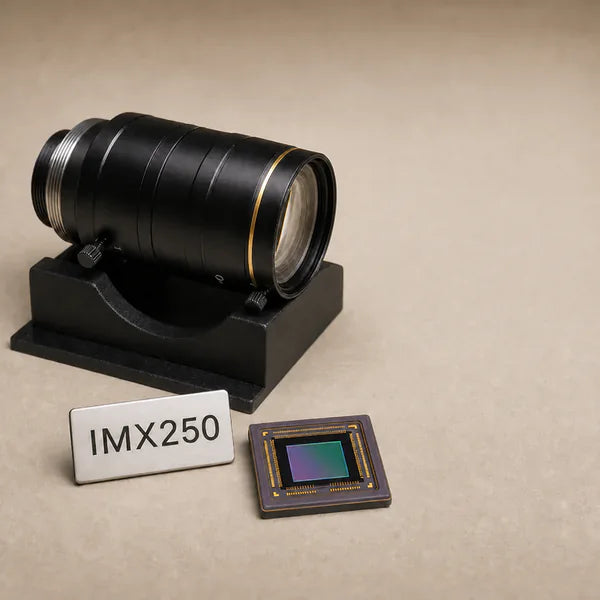

IMX250 is a Sony 2/3-inch global-shutter CMOS image sensor from the Pregius family, a standard for high-accuracy global-shutter machine vision. It delivers 2448x2048 (5.0 MP) at 89.5 fps with 3.45um pixels across an 11.01mm diagonal over Sub-LVDS in color or mono, with NIR sensitivity. Commonlands matches M12 Lenses (and C-Mount Lenses) to its image circle and calculates the horizontal, vertical, and diagonal field of view.
IMX250 specifications
| Part number | IMX250 |
|---|---|
| Manufacturer | Sony |
| Family | Pregius |
| Resolution | 2448x2048 (5.0 MP) |
| Optical format | 2/3" |
| Active area | 8.45 × 7.07 mm |
| Sensor diagonal | 11.01 mm |
| Pixel size | 3.45 µm |
| Shutter | Global |
| Max frame rate | 89.5 fps |
| Interface | Sub-LVDS |
| Color / mono | Color / Mono |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: Sony IMX250 product page
Compatible Commonlands Lenses for the IMX250 with Calculated Field of View
Each field of view below is calculated for the IMX250 active area (8.45 × 7.07 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 11.01 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX250
- Best ~30° HFoV: 16mm C-Mount Lens (CIL553) (16 mm, f/2.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX250: 30° H × 25° V (38° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~60° HFoV: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX250: 56° H × 48° V (69° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~120° HFoV: 4.9mm C-Mount Lens (CIL505) (4.9 mm, f/2.2). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX250: 101° H × 84° V (135° diagonal); image circle covers the full sensor; verified 2026-07-02.
Commonlands offers 11 lens options for the IMX250: M12 Lenses and C-Mount Lenses from 1.3 mm to 75 mm focal length, spanning 6° to 184° horizontal field of view on the IMX250 active area.
| Commonlands Lens | Focal Length | Mount | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.3mm M12 Lens (CIL293) | 1.3 mm | M12 | f/2.2 | 184° | 184° | 184° | Circular image |
| 4mm C-Mount Lens (CIL529) | 4 mm | C-mount | f/2.8 | 97° | 86° | 114° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-mount | f/2.2 | 101° | 84° | 135° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | C-mount | f/1.5 | 56° | 48° | 69° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-mount | f/2.4 | 54° | 46° | 68° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-mount | f/2.8 | 39° | 33° | 49° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-mount | f/2.8 | 30° | 25° | 38° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-mount | f/2.6 | 19° | 16° | 25° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-mount | f/2.6 | 14° | 12° | 18° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-mount | f/2.8 | 10° | 8° | 13° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-mount | f/3 | 6° | 5° | 8° | Covers |
covers means the lens image circle is at least as large as the 11.01 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX250
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX250. Confirm the lens image circle covers the 11.01 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 5.0 MP or higher so it resolves the 3.45 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the IMX250? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX250 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX250 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX250 lens and camera module FAQ
What lens fits the IMX250 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the IMX250’s 11.01 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the IMX250 active area (8.45 × 7.07 mm).
What is the IMX250 sensor size?
The IMX250 is a 2/3" format sensor with a 8.45 × 7.07 mm active area and a 11.01 mm diagonal, built on 3.45 µm pixels at 2448x2048 resolution.
Does Commonlands build a custom MIPI camera module for the IMX250?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX250 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX250 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
