onsemi AR1223 · 12.5MP 1/1.6" rolling-shutter CMOS image sensor
AR1223 Sensor Specifications & Compatible M12 and C-Mount Lenses
AR1223 is an onsemi 1/1.6" rolling-shutter CMOS image sensor from the Hyperlux LH family, designed for automotive imaging with NIR response. It delivers 4096x3046 (12.5 MP) on 2 um pixels across a 10.21mm diagonal at up to 60 fps over MIPI CSI-2, in color or mono. Commonlands matches M12 Lenses to its 10.21mm image circle and provides the calculated horizontal, vertical, and diagonal field of view.
AR1223 specifications
| Part number | AR1223 |
|---|---|
| Manufacturer | onsemi |
| Family | Hyperlux LH |
| Resolution | 4096x3046 (12.5 MP) |
| Optical format | 1/1.6" |
| Active area | 8.19 × 6.09 mm |
| Sensor diagonal | 10.21 mm |
| Pixel size | 2.0 µm |
| Shutter | Rolling |
| Max frame rate | 60 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color / Mono |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: onsemi AR1223 product page
Compatible Commonlands Lenses for the AR1223 with Calculated Field of View
Each field of view below is calculated for the AR1223 active area (8.19 × 6.09 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 10.21 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the AR1223

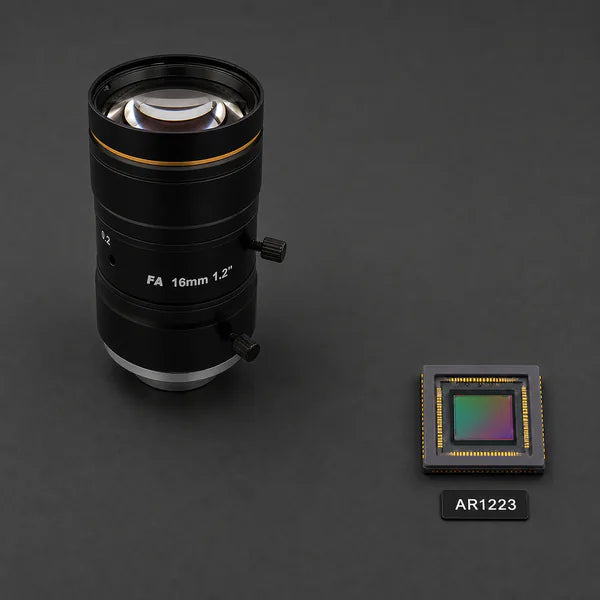

- Best ~30° HFoV: 16mm C-Mount Lens (CIL553) (16 mm, f/2.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the AR1223: 29° H × 22° V (35° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the AR1223: 54° H × 42° V (65° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Wide-Angle 4.5mm M12 Lens (CIL344A) (4.5 mm, f/2.7). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the AR1223: 106° H × 78° V (134° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Compact low-cost pick: Telephoto 50mm M12 Lens (CIL051) (50 mm, f/2.8). Why: the lowest-priced covering M12 barrel ($79). Field of view on the AR1223: 9° H × 7° V (12° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Find a lens for the AR1223 in the M12 Lens collection or the C-Mount Lens collection. The covering options below run from 1.3 mm to 100 mm focal length and span 5° to 190° horizontal field of view on the AR1223 active area.
| Commonlands Lens | Focal Length | Mount | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.3mm M12 Lens (CIL293) | 1.3 mm | M12 | f/2.2 | 184° | 184° | 184° | Circular image |
| Fisheye 1.95mm M12 Lens (CIL281) | 1.95 mm | M12 | f/1.8 | 190° | 181° | 190° | Circular image |
| 4mm C-Mount Lens (CIL529) | 4 mm | C-mount | f/2.8 | 95° | 76° | 109° | Covers |
| Wide-Angle 4.5mm M12 Lens (CIL344A) | 4.5 mm | M12 | f/2.7 | 106° | 78° | 134° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-mount | f/2.2 | 98° | 72° | 124° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | C-mount | f/1.5 | 54° | 42° | 65° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-mount | f/2.4 | 53° | 40° | 64° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-mount | f/2.8 | 38° | 28° | 46° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-mount | f/2.8 | 29° | 22° | 35° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-mount | f/2.6 | 19° | 14° | 23° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-mount | f/2.6 | 13° | 10° | 17° | Covers |
| Telephoto 50mm M12 Lens (CIL051) | 50 mm | M12 | f/2.8 | 9° | 7° | 12° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-mount | f/2.8 | 9° | 7° | 12° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-mount | f/3 | 6° | 5° | 8° | Covers |
| Telephoto 100mm M12 Lens (CIL100) | 100 mm | M12 | f/3.6 | 5° | 3° | 6° | Covers |
Covers in the table means the lens image circle is at least as large as the 10.21 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the AR1223
Start from the field of view your application needs, then read across to the focal length that produces it on the AR1223. Confirm the lens image circle covers the 10.21 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 12.5 MP or higher so it resolves the 2.0 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the AR1223? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the AR1223 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned AR1223 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
