Sony image sensor
ISX028 sensor specifications and
compatible M12 lenses & C-mount lenses

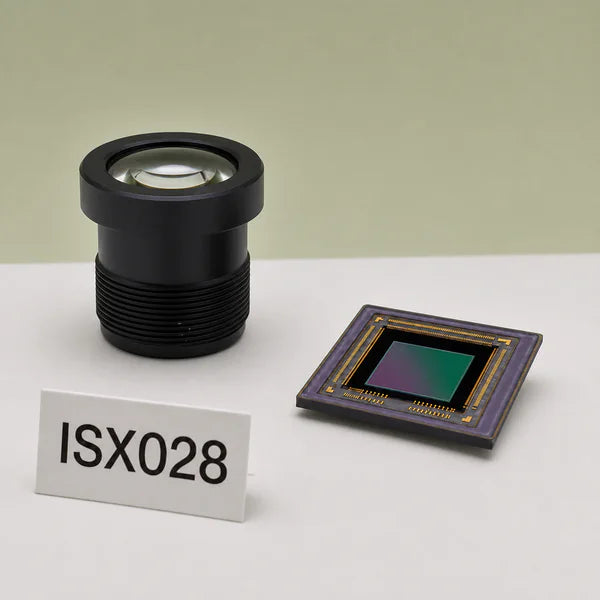

ISX028 is a Sony 1/1.7" rolling-shutter CMOS image sensor for color capture. It delivers 3840x2160 (8.3 MP) on 2.1 um pixels at 30 fps over MIPI CSI-2, with a 9.25 mm diagonal. Commonlands matches M12 Lenses to the ISX028 image circle and provides the calculated horizontal, vertical, and diagonal field of view for each option.
ISX028 specifications
| Part number | ISX028 |
|---|---|
| Manufacturer | Sony |
| Resolution | 3840x2160 (8.3 MP) |
| Optical format | 1/1.7" |
| Active area | 8.06 × 4.54 mm |
| Sensor diagonal | 9.25 mm |
| Pixel size | 2.1 µm |
| Shutter | Rolling |
| Max frame rate | 30 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: Sony ISX028 product page
Compatible Commonlands lenses for the ISX028. Field of View calculated with Distortion.
Each field of view below is calculated for the ISX028 active area (8.06 × 4.54 mm) using our MCP server and Field of view calculator. The rectilinear formula FoV = 2 × arctan(dimension ÷ (2 × focal length)) is incorrect for many lenses as it doesn't include distortion. Coverage shows whether the lens image circle covers the 9.25 mm sensor diagonal. Fisheye and f-theta lenses do not follow the rectilinear formula, so their entries link to the product page for the mapped field of view.
Engineering picks for the ISX028
- Best ~30° HFoV: Telephoto 14.2mm M12 Lens (CIL142) (14.2 mm, f/2.6). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the ISX028: 32° H × 18° V (36° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~60° HFoV: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the ISX028: 53° H × 32° V (60° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~120° HFoV: Wide-Angle 3.9mm M12 Lens (CIL339) (3.9 mm, f/1.6). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the ISX028: 121° H × 67° V (139° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Lowest distortion: Low Distortion 4.2mm M12 Lens (CIL042) (4.2 mm, f/1.9). Why: measured -1% TV distortion, the flattest image among covering lenses. Field of view on the ISX028: 88° H × 57° V (96° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Compact low-cost pick: Telephoto 16mm M12 Lens (CIL160) (16 mm, f/1.9). Why: the lowest-priced covering M12 barrel ($15). Field of view on the ISX028: 28° H × 16° V (32° diagonal); image circle covers the full sensor; verified 2026-07-02.
Commonlands offers 30 lens options for the ISX028: M12 Lenses and C-Mount Lenses from 1.3 mm to 100 mm focal length, spanning 5° to 195° horizontal field of view on the ISX028 active area.
| Commonlands Lens | Focal Length | Mount | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.3mm M12 Lens (CIL293) | 1.3 mm | M12 | f/2.2 | 184° | 164° | 184° | Circular image |
| Fisheye 1.55mm M12 Lens (CIL216) | 1.55 mm | M12 | f/2.2 | 195° | 186° | 195° | Circular image |
| Low Distortion 3mm M12 Lens (CIL030) | 3 mm | M12 | f/2.1 | 113° | 76° | 122° | Covers |
| Wide-Angle 3.5mm M12 Lens (CIL334) | 3.5 mm | M12 | f/2.2 | 143° | 76° | 169° | Covers |
| Wide-Angle 3.9mm M12 Lens (CIL339) | 3.9 mm | M12 | f/1.6 | 121° | 67° | 139° | Covers |
| 4mm C-Mount Lens (CIL529) | 4 mm | C-mount | f/2.8 | 94° | 60° | 103° | Covers |
| Low Distortion 4.2mm M12 Lens (CIL042) | 4.2 mm | M12 | f/1.9 | 88° | 57° | 96° | Covers |
| Wide-Angle 4.5mm M12 Lens (CIL344A) | 4.5 mm | M12 | f/2.7 | 105° | 58° | 121° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-mount | f/2.2 | 96° | 53° | 112° | Covers |
| Low Distortion 5.2mm M12 Lens (CIL052) | 5.2 mm | M12 | f/3.4 | 76° | 47° | 84° | Covers |
| Wide-Angle 5.8mm M12 Lens (CIL358) | 5.8 mm | M12 | f/1.9 | 85° | 46° | 100° | Covers |
| Low Distortion 5.9mm M12 Lens (CIL059) | 5.9 mm | M12 | f/1.7 | 71° | 43° | 79° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | C-mount | f/1.5 | 53° | 32° | 60° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-mount | f/2.4 | 52° | 30° | 59° | Covers |
| 9.1mm M12 Lens (CIL092) | 9.1 mm | M12 | f/2.6 | 49° | 28° | 56° | Covers |
| Telephoto 12mm M12 Lens (CIL122) | 12 mm | M12 | f/2 | 38° | 22° | 44° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-mount | f/2.8 | 37° | 21° | 42° | Covers |
| Telephoto 14.2mm M12 Lens (CIL142) | 14.2 mm | M12 | f/2.6 | 32° | 18° | 36° | Covers |
| Telephoto 16mm M12 Lens (CIL160) | 16 mm | M12 | f/1.9 | 28° | 16° | 32° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-mount | f/2.8 | 28° | 16° | 32° | Covers |
| Telephoto 21.6mm M12 Lens (CIL121) | 21.6 mm | M12 | f/2.8 | 21° | 12° | 24° | Covers |
| Telephoto 25mm M12 Lens (CIL250) | 25 mm | M12 | f/2 | 18° | 10° | 21° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-mount | f/2.6 | 18° | 10° | 21° | Covers |
| Telephoto 35mm M12 Lens (CIL350) | 35 mm | M12 | f/2.4 | 13° | 7° | 15° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-mount | f/2.6 | 13° | 7° | 15° | Covers |
| Telephoto 50mm M12 Lens (CIL051) | 50 mm | M12 | f/2.8 | 9° | 5° | 11° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-mount | f/2.8 | 9° | 5° | 11° | Covers |
| Telephoto 75mm M12 Lens (CIL076) | 75 mm | M12 | f/3.4 | 6° | 3° | 7° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-mount | f/3 | 6° | 3° | 7° | Covers |
| Telephoto 100mm M12 Lens (CIL100) | 100 mm | M12 | f/3.6 | 5° | 3° | 5° | Covers |
Coverage key: covers = lens image circle ≥ sensor diagonal; crops = image circle smaller than the diagonal (expect vignetting at the corners); verify = image circle not published for this lens — ask our engineers to confirm coverage.
How to choose a lens for the ISX028
Start from the field of view your application needs, then read across to the focal length that produces it on the ISX028. Confirm the lens image circle covers the 9.25 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 8.3 MP or higher so it resolves the 2.1 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a MIPI camera module around the ISX028? Commonlands can provide customized MIPI modules with our lenses; MoQs apply. Commonlands provides M12 lenses and C-mount optics and ships from San Diego, with same-day shipping for in-stock lenses ordered by 12 PM PST. We also assemble and align lens-to-sensor modules. Talk to an applications engineer.
