How to pick an M12 lens for your drone
Drone optics are different from ground-based systems. Every gram you add to the airframe comes out of your flight time budget. Vibration from spinning props can blur images if the lens isn't locked down. And the FOV you need depends entirely on whether you're racing through gates or surveying a construction site. Here's how to think through the tradeoffs.
Weight constraints
On a small quad, payload weight directly affects flight time and maneuverability. A 5g lens versus a 2g lens means a measurable difference in battery drain. M8 lenses are generally lighter than M12, with some under 1g total. The CIL829 (M8, 2.8mm) weighs about half a gram. For micro builds and solar-powered fixed wings, that matters.

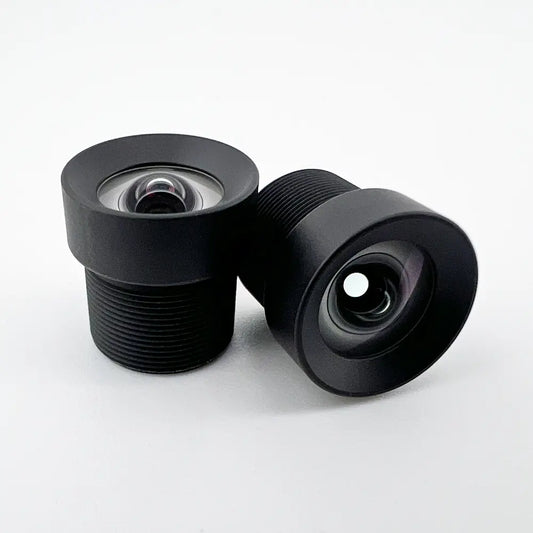

The tradeoff is optical performance. M12 lenses offer more focal length options, faster apertures, and generally lower distortion because there's more glass to work with. If your drone can handle 5-10g of lens weight, M12 gives you more flexibility. The CIL036 (3.3mm, $19) weighs about 2g and shows up in a lot of consumer drone builds for that reason.
Vibration and shock
Prop vibration is the enemy of image sharpness. High-frequency vibrations blur frames even when the drone is hovering steady. Hard landings can shift a lens that wasn't secured properly. Two things help: use threadlock on the M12 threads, and make sure the lens barrel isn't extending past any protective housing where it could take impact.
Some drone builders pot the lens in place with a dab of silicone after focusing. That prevents rotation during flight. If you're doing a lot of takeoffs and landings, consider a recessed mount that keeps the lens barrel inside the airframe profile.
Field of view for different missions
FOV requirements vary dramatically by application. FPV racing wants maximum coverage, 140° to 180° or more, so pilots can see gates and obstacles in peripheral vision. The 195° M8 fisheye is popular here. Distortion doesn't matter because you're not measuring anything, just flying.
Inspection drones need the opposite. Narrower FOV (40° to 60°) gives you more pixels on target at standoff distances. The CIL083 (8mm, 52° FOV) is built for this. You're trading coverage for detail.
Mapping sits in the middle. You need enough coverage to capture overlapping swaths efficiently, but low distortion to avoid warping your orthomosaics. 70° to 100° is typical. The CIL335 (3.5mm, 92°) works well for this. Use the FOV calculator to match your sensor format.
Distortion matters for photogrammetry
Barrel distortion is the curved warping you see in wide-angle images, where straight lines bow outward. For FPV, it's irrelevant. For photogrammetry and mapping, it ruins your data. Distortion throws off ground control point alignment and creates errors in your orthomosaics and 3D models.
Software can correct distortion, but the correction is only as good as your calibration. Lenses with under 1% optical distortion, like the CIL083, require less correction and produce more accurate results. For photogrammetry, distortion matters more than resolution. A sharp image that's geometrically warped is worse than a slightly softer image that's true to shape. To work the numbers for a specific sensor and altitude, use the drone mapping lens guide, which includes a GSD and object detection calculator.
Sensor compatibility
Every lens has an image circle. If that circle is smaller than your sensor's diagonal, you get dark corners. Common drone sensors and their diagonals:
- IMX477 (1/2.3", 7.9mm diagonal): Raspberry Pi HQ Camera, needs larger image circle lenses
- IMX462 (1/2.8", 6.4mm diagonal): popular for low-light drones
- AR0234 (1/2.6", 6.9mm diagonal): global shutter, good for fast motion
- OV9281 (1/4", 4.6mm diagonal): common stereo/depth sensor
Check the lens datasheet for image circle size, or reference our sensor size chart. If you're building around a Jetson Nano or Raspberry Pi compute module, the sensor is usually IMX477 or IMX219. ArduCam and e-con have good module options with M12 mounts.
Day, night, and IR operation
Some drones fly at dusk or use NIR illumination for night ops. Most M12 lenses pass near-infrared just fine, but you may want to remove the IR-cut filter from your camera or add a dedicated IR-pass filter. Fast apertures (F/1.4 to F/2.0) help in low light by gathering more photons per exposure.
Thermal imaging is a different story. LWIR (8-14 micron) lenses use germanium or chalcogenide glass, not standard optical glass. Standard M12 lenses won't work for thermal. If you need LWIR, you're looking at specialized cores from FLIR or Seek.
Regulatory considerations
FAA Part 107 governs commercial drone operations in the US. If you're flying for photogrammetry, inspection, or any commercial purpose, you need reliable optics that produce consistent results. For BVLOS (beyond visual line of sight) waivers, regulators want to see that your sense-and-avoid system has adequate coverage and reliability.
This isn't a lens spec, but it matters for lens selection. Cheap optics with inconsistent quality control can fail at the wrong time. We test every lens before shipping and can provide individual MTF test reports for critical applications. For fleet deployments where you need matched optics across multiple aircraft, let us know and we'll pull from the same production lot.
