Sony IMX458 · 13.1MP 1/3.06" rolling-shutter CMOS image sensor
IMX458 Sensor Specifications & Compatible M12 and C-Mount Lenses

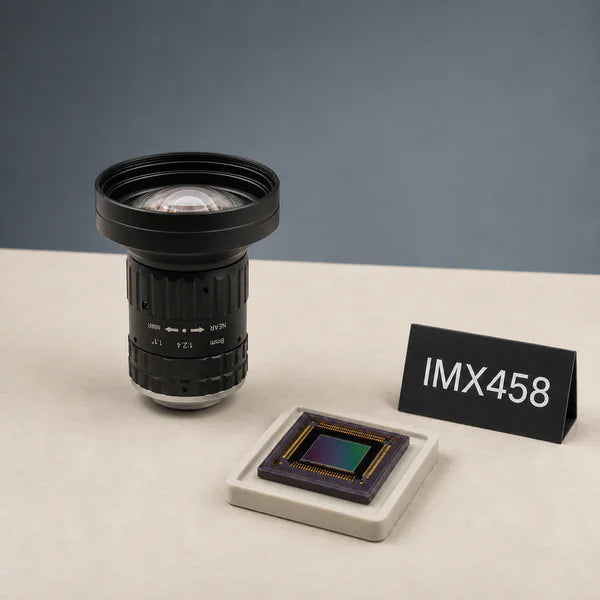

The IMX458 is a Sony 1/3.06" rolling-shutter CMOS image sensor from the Exmor RS family, for embedded and mobile HDR camera modules. It captures 4208x3120 (13.1 MP) at up to 30 fps on 1.12 um pixels across a 5.87 mm diagonal over MIPI CSI-2 in color. Every M12 Lens in the table below covers the 5.87 mm image circle, each with its calculated horizontal, vertical, and diagonal field of view.
IMX458 specifications
| Part number | IMX458 |
|---|---|
| Manufacturer | Sony |
| Family | Exmor RS |
| Resolution | 4208x3120 (13.1 MP) |
| Optical format | 1/3.06" |
| Active area | 4.71 × 3.49 mm |
| Sensor diagonal | 5.87 mm |
| Pixel size | 1.12 µm |
| Shutter | Rolling |
| Max frame rate | 30 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: Sony IMX458 product page
Compatible Commonlands Lenses for the IMX458 with Calculated Field of View
Each field of view below is calculated for the IMX458 active area (4.71 × 3.49 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 5.87 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX458
- Best ~30° HFoV: 8.5mm C-Mount Lens (CIL508) (8.5 mm, f/2.4). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX458: 31° H × 23.2° V (38.1° diagonal). The image circle covers the full sensor (rectilinear estimate, computed 2026-07-02).
- Best ~60° HFoV: 4mm C-Mount Lens (CIL529) (4 mm, f/2.8). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX458: 61° H × 47.2° V (72.5° diagonal). The image circle covers the full sensor (rectilinear estimate, computed 2026-07-02).
- Best ~120° HFoV: Low Distortion 1.8mm M12 Lens (CIL018) (1.8 mm, f/2.8). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX458: 105.3° H × 88.3° V (116.9° diagonal). The image circle covers the full sensor (rectilinear estimate, computed 2026-07-02).
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the IMX458: 56.3° H × 43.3° V (67.4° diagonal). The image circle covers the full sensor (rectilinear estimate, computed 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the IMX458: 32.8° H × 24.6° V (40.3° diagonal). The image circle covers the full sensor (rectilinear estimate, computed 2026-07-02).
Find a lens for the IMX458 in the M12 Lens collection or the C-Mount Lens collection. The covering options below run from 1.8 mm to 100 mm focal length and span 2.7° to 105.3° horizontal field of view on the IMX458 active area.
| Commonlands Lens | Focal Length | Mount | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Low Distortion 1.8mm M12 Lens (CIL018) | 1.8 mm | M12 | f/2.8 | 105.3° | 88.3° | 116.9° | Covers |
| Low Distortion 2.2mm M12 Lens (CIL023) | 2.2 mm | M12 | f/2.2 | 93.9° | 76.9° | 106.3° | Covers |
| Low Distortion 2.6mm M12 Lens (CIL028) | 2.6 mm | M12 | f/2.6 | 84.4° | 67.8° | 96.9° | Covers |
| Low Distortion 2.7mm M12 Lens (CIL027) | 2.7 mm | M12 | f/2.8 | 82.2° | 65.8° | 94.7° | Covers |
| Low Distortion 2.8mm M12 Lens (CIL093) | 2.8 mm | M12 | f/2.4 | 80.2° | 63.9° | 92.7° | Covers |
| Low Distortion 3mm M12 Lens (CIL030) | 3 mm | M12 | f/2.1 | 76.3° | 60.4° | 88.7° | Covers |
| 4mm C-Mount Lens (CIL529) | 4 mm | C-mount | f/2.8 | 61° | 47.2° | 72.5° | Covers |
| Low Distortion 4.2mm M12 Lens (CIL042) | 4.2 mm | M12 | f/1.9 | 58.6° | 45.2° | 69.9° | Covers |
| Low Distortion 4.4mm M12 Lens (CIL043) | 4.4 mm | M12 | f/3.2 | 56.3° | 43.3° | 67.4° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-mount | f/2.2 | 51.4° | 39.2° | 61.8° | Covers |
| Low Distortion 5.2mm M12 Lens (CIL052) | 5.2 mm | M12 | f/3.4 | 48.8° | 37.1° | 58.9° | Covers |
| 5.7mm M12 Lens (CIL857) | 5.7 mm | M12 | f/3 | 44.9° | 34.1° | 54.5° | Covers |
| Low Distortion 5.9mm M12 Lens (CIL059) | 5.9 mm | M12 | f/1.7 | 43.5° | 33° | 52.9° | Covers |
| 6mm M12 Lens (CIL061) | 6 mm | M12 | f/1.9 | 42.9° | 32.5° | 52.1° | Covers |
| Low Distortion 6.2mm M12 Lens (CIL062) | 6.2 mm | M12 | f/2.8 | 41.6° | 31.5° | 50.6° | Covers |
| 7.2mm M12 Lens (CIL872) | 7.2 mm | M12 | f/2.8 | 36.2° | 27.3° | 44.3° | Covers |
| 7.8mm M12 Lens (CIL078) | 7.8 mm | M12 | f/2 | 33.6° | 25.3° | 41.2° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | C-mount | f/1.5 | 32.8° | 24.6° | 40.3° | Covers |
| 8.1mm M12 Lens (CIL083) | 8.1 mm | M12 | f/2.8 | 32.4° | 24.3° | 39.8° | Covers |
| 8.2mm M12 Lens (CIL085) | 8.2 mm | M12 | f/3 | 32.1° | 24.1° | 39.4° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-mount | f/2.4 | 31° | 23.2° | 38.1° | Covers |
| 9.1mm M12 Lens (CIL092) | 9.1 mm | M12 | f/2.6 | 29° | 21.7° | 35.7° | Covers |
| Telephoto 10.4mm M12 Lens (CIL104) | 10.4 mm | M12 | f/3.8 | 25.5° | 19.1° | 31.5° | Covers |
| Telephoto 12mm M12 Lens (CIL122) | 12 mm | M12 | f/2 | 22.2° | 16.6° | 27.5° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-mount | f/2.8 | 22.2° | 16.6° | 27.5° | Covers |
| Telephoto 12.2mm M12 Lens (CIL120) | 12.2 mm | M12 | f/2.2 | 21.9° | 16.3° | 27° | Covers |
| Telephoto 12.5mm M12 Lens (CIL125) | 12.5 mm | M12 | f/2.4 | 21.4° | 15.9° | 26.4° | Covers |
| Telephoto 14.2mm M12 Lens (CIL142) | 14.2 mm | M12 | f/2.6 | 18.8° | 14° | 23.3° | Covers |
| Telephoto 16mm M12 Lens (CIL160) | 16 mm | M12 | f/1.9 | 16.8° | 12.5° | 20.8° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-mount | f/2.8 | 16.8° | 12.5° | 20.8° | Covers |
| Telephoto 18mm M12 Lens (CIL178) | 18 mm | M12 | f/2 | 14.9° | 11.1° | 18.5° | Covers |
| Telephoto 19mm M12 Lens (CIL190) | 19 mm | M12 | f/2 | 14.1° | 10.5° | 17.6° | Covers |
| Telephoto 21.6mm M12 Lens (CIL121) | 21.6 mm | M12 | f/2.8 | 12.5° | 9.2° | 15.5° | Covers |
| Telephoto 25mm M12 Lens (CIL250) | 25 mm | M12 | f/2 | 10.8° | 8° | 13.4° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-mount | f/2.6 | 10.8° | 8° | 13.4° | Covers |
| Telephoto 35mm M12 Lens (CIL350) | 35 mm | M12 | f/2.4 | 7.7° | 5.7° | 9.6° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-mount | f/2.6 | 7.7° | 5.7° | 9.6° | Covers |
| Telephoto 50mm M12 Lens (CIL051) | 50 mm | M12 | f/2.8 | 5.4° | 4° | 6.7° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-mount | f/2.8 | 5.4° | 4° | 6.7° | Covers |
| Telephoto 75mm M12 Lens (CIL076) | 75 mm | M12 | f/3.4 | 3.6° | 2.7° | 4.5° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-mount | f/3 | 3.6° | 2.7° | 4.5° | Covers |
| Telephoto 100mm M12 Lens (CIL100) | 100 mm | M12 | f/3.6 | 2.7° | 2° | 3.4° | Covers |
Covers in the table means the lens image circle is at least as large as the 5.87 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX458
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX458. Confirm the lens image circle covers the 5.87 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 13.1 MP or higher so it resolves the 1.12 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the IMX458? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX458 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX458 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX458 lens and camera module FAQ
What lens fits the IMX458 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the IMX458’s 5.87 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the IMX458 active area (4.71 × 3.49 mm).
What is the IMX458 sensor size?
The IMX458 is a 1/3.06" format sensor with a 4.71 × 3.49 mm active area and a 5.87 mm diagonal, built on 1.12 µm pixels at 4208x3120 resolution.
Does Commonlands build a custom MIPI camera module for the IMX458?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX458 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX458 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
