OmniVision image sensor · TheiaCel
OX05D10 sensor specifications and
compatible M12 lenses & C-mount lenses

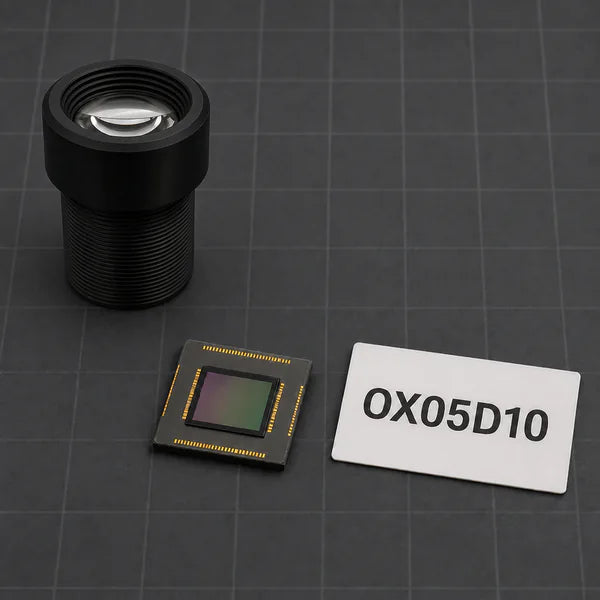

OX05D10 is an OmniVision 1/2.5-inch rolling-shutter CMOS image sensor from the TheiaCel family. It resolves 5.5MP at 2880x1920 with 2.1um pixels and runs 60 fps over MIPI CSI-2 for high-dynamic-range viewing. Commonlands pairs M12 Lenses to its 7.27mm image circle and calculates the horizontal, vertical, and diagonal field of view.
OX05D10 specifications
| Part number | OX05D10 |
|---|---|
| Manufacturer | OmniVision |
| Family | TheiaCel |
| Resolution | 2880x1920 (5.5 MP) |
| Optical format | 1/2.5" |
| Active area | 6.05 × 4.03 mm |
| Sensor diagonal | 7.27 mm |
| Pixel size | 2.1 µm |
| Shutter | Rolling |
| Max frame rate | 60 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: OmniVision OX05D10 product page
Compatible Commonlands lenses for the OX05D10. Field of View calculated with Distortion.
Each field of view below is calculated for the OX05D10 active area (6.05 × 4.03 mm) using our MCP server and Field of view calculator. The rectilinear formula FoV = 2 × arctan(dimension ÷ (2 × focal length)) is incorrect for many lenses as it doesn't include distortion. Coverage shows whether the lens image circle covers the 7.27 mm sensor diagonal. Fisheye and f-theta lenses do not follow the rectilinear formula, so their entries link to the product page for the mapped field of view.
Engineering picks for the OX05D10
- Best ~30° HFoV: Telephoto 12mm M12 Lens (CIL122) (12 mm, f/2). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the OX05D10: 29° H × 19° V (34° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~60° HFoV: Low Distortion 5.2mm M12 Lens (CIL052) (5.2 mm, f/3.4). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the OX05D10: 61° H × 42° V (70° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best ~120° HFoV: Wide-Angle 2.9mm M12 Lens (CIL330) (2.9 mm, f/2.6). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the OX05D10: 120° H × 80° V (144° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the OX05D10: 69° H × 49° V (80° diagonal); image circle covers the full sensor; verified 2026-07-02.
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the OX05D10: 41° H × 28° V (49° diagonal); image circle covers the full sensor; verified 2026-07-02.
Commonlands offers 51 lens options for the OX05D10: M12 Lenses and C-Mount Lenses from 0.8 mm to 100 mm focal length, spanning 3° to 195° horizontal field of view on the OX05D10 active area.
Coverage key: covers = lens image circle ≥ sensor diagonal; crops = image circle smaller than the diagonal (expect vignetting at the corners); verify = image circle not published for this lens — ask our engineers to confirm coverage.
How to choose a lens for the OX05D10
Start from the field of view your application needs, then read across to the focal length that produces it on the OX05D10. Confirm the lens image circle covers the 7.27 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 5.5 MP or higher so it resolves the 2.1 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a MIPI camera module around the OX05D10? Commonlands can provide customized MIPI modules with our lenses; MoQs apply. Commonlands provides M12 lenses and C-mount optics and ships from San Diego, with same-day shipping for in-stock lenses ordered by 12 PM PST. We also assemble and align lens-to-sensor modules. Talk to an applications engineer.
