onsemi image sensor · Hyperlux LH
AR0246 sensor specifications and
compatible M12 lenses & C-mount lenses

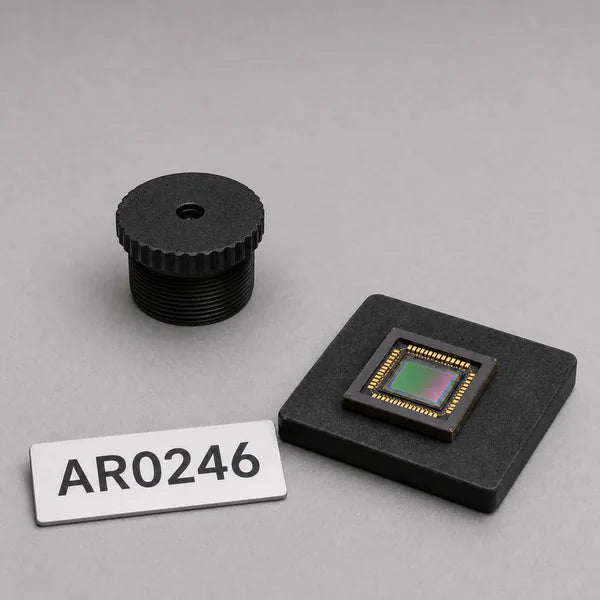

AR0246 is an onsemi 1/4" rolling-shutter CMOS image sensor in the Hyperlux LH family, built for ADAS and viewing applications. It captures 1920x1080 (2.1 MP) on 2 um pixels across a 4.41mm diagonal over MIPI CSI-2, with NIR sensitivity and color output. Commonlands matches M12 Lenses to its 4.41mm image circle and reports the calculated horizontal, vertical, and diagonal field of view for any focal length.
AR0246 specifications
| Part number | AR0246 |
|---|---|
| Manufacturer | onsemi |
| Family | Hyperlux LH |
| Resolution | 1920x1080 (2.1 MP) |
| Optical format | 1/4" |
| Active area | 3.84 × 2.16 mm |
| Sensor diagonal | 4.41 mm |
| Pixel size | 2.0 µm |
| Shutter | Rolling |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: onsemi AR0246 product page
Compatible Commonlands lenses for the AR0246. Field of View calculated with Distortion.
Each field of view below is calculated for the AR0246 active area (3.84 × 2.16 mm) using our MCP server and Field of view calculator. The rectilinear formula FoV = 2 × arctan(dimension ÷ (2 × focal length)) is incorrect for many lenses as it doesn't include distortion. Coverage shows whether the lens image circle covers the 4.41 mm sensor diagonal. Fisheye and f-theta lenses do not follow the rectilinear formula, so their entries link to the product page for the mapped field of view.
Coverage key: covers = lens image circle ≥ sensor diagonal; crops = image circle smaller than the diagonal (expect vignetting at the corners); verify = image circle not published for this lens — ask our engineers to confirm coverage.
How to choose a lens for the AR0246
Start from the field of view your application needs, then read across to the focal length that produces it on the AR0246. Confirm the lens image circle covers the 4.41 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 2.1 MP or higher so it resolves the 2.0 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a MIPI camera module around the AR0246? Commonlands can provide customized MIPI modules with our lenses; MoQs apply. Commonlands provides M12 lenses and C-mount optics and ships from San Diego, with same-day shipping for in-stock lenses ordered by 12 PM PST. We also assemble and align lens-to-sensor modules. Talk to an applications engineer.
