Sony image sensor · Exmor RS
IMX623 sensor specifications and
compatible M12 lenses & C-mount lenses

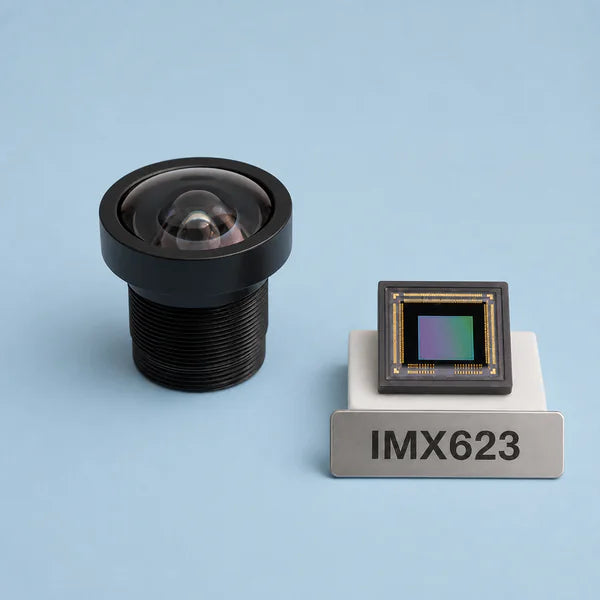

IMX623 is a Sony 1/2.43" rolling-shutter CMOS image sensor in the Exmor RS family, targeted at automotive in-cabin and ADAS use. It resolves 3.0 MP at 1936x1556 on 3 um pixels across a 7.45 mm diagonal over MIPI CSI-2. Commonlands matches M12 Lenses to its 7.45 mm image circle and supplies the calculated horizontal, vertical, and diagonal field of view, with C-Mount Lenses available as well.
IMX623 specifications
| Part number | IMX623 |
|---|---|
| Manufacturer | Sony |
| Family | Exmor RS |
| Resolution | 1936x1556 (3.0 MP) |
| Optical format | 1/2.43" |
| Active area | 5.81 × 4.67 mm |
| Sensor diagonal | 7.45 mm |
| Pixel size | 3.0 µm |
| Shutter | Rolling |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: Sony IMX623 product page
Compatible Commonlands lenses for the IMX623. Field of View calculated with Distortion.
Each field of view below is calculated for the IMX623 active area (5.81 × 4.67 mm) using our MCP server and Field of view calculator. The rectilinear formula FoV = 2 × arctan(dimension ÷ (2 × focal length)) is incorrect for many lenses as it doesn't include distortion. Coverage shows whether the lens image circle covers the 7.45 mm sensor diagonal. Fisheye and f-theta lenses do not follow the rectilinear formula, so their entries link to the product page for the mapped field of view.
Coverage key: covers = lens image circle ≥ sensor diagonal; crops = image circle smaller than the diagonal (expect vignetting at the corners); verify = image circle not published for this lens — ask our engineers to confirm coverage.
How to choose a lens for the IMX623
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX623. Confirm the lens image circle covers the 7.45 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 3.0 MP or higher so it resolves the 3.0 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a MIPI camera module around the IMX623? Commonlands can provide customized MIPI modules with our lenses; MoQs apply. Commonlands provides M12 lenses and C-mount optics and ships from San Diego, with same-day shipping for in-stock lenses ordered by 12 PM PST. We also assemble and align lens-to-sensor modules. Talk to an applications engineer.
