Sony IMX675 · 5.0MP 1/2.8" rolling-shutter CMOS image sensor
IMX675 Sensor Specifications & Compatible M12 and C-Mount Lenses

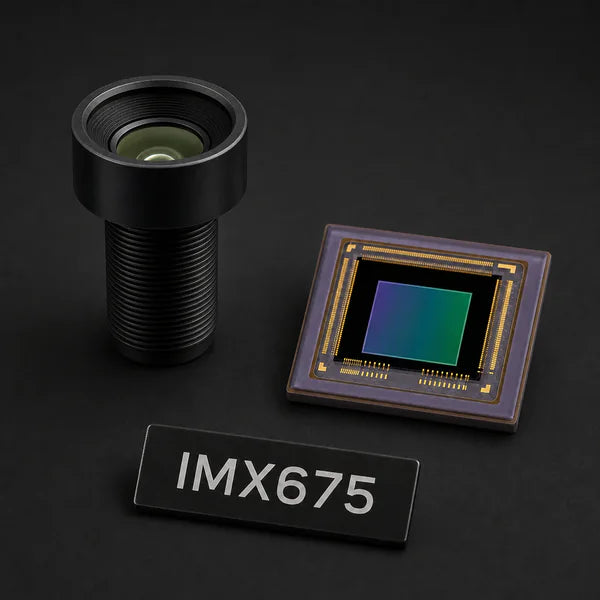

IMX675 is a Sony 1/2.8" rolling-shutter CMOS image sensor from the STARVIS 2 family, tuned for low-light and near-infrared capture. It resolves 5.0 MP at 2592x1944 on 2 um pixels across a 6.48 mm diagonal at 80 fps over MIPI CSI-2, with NIR sensitivity. Commonlands matches M12 Lenses to that 6.48 mm image circle and supplies the calculated horizontal, vertical, and diagonal field of view, including NIR-corrected designs.
IMX675 specifications
| Part number | IMX675 |
|---|---|
| Manufacturer | Sony |
| Family | STARVIS 2 |
| Resolution | 2592x1944 (5.0 MP) |
| Optical format | 1/2.8" |
| Active area | 5.18 × 3.89 mm |
| Sensor diagonal | 6.48 mm |
| Pixel size | 2.0 µm |
| Shutter | Rolling |
| Max frame rate | 80 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color / Mono |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: Sony IMX675 product page
Compatible Commonlands Lenses for the IMX675 with Calculated Field of View
Each field of view below is calculated for the IMX675 active area (5.18 × 3.89 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 6.48 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX675
- Best ~30° HFoV: 9.1mm M12 Lens (CIL092) (9.1 mm, f/2.6). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX675: 32° H × 24° V (40° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX675: 61° H × 48° V (73° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Fisheye 2.5mm M12 Lens (CIL926) (2.5 mm, f/2.5). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX675: 119° H × 89° V (149° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the IMX675: 36° H × 27° V (44° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Compact low-cost pick: Telephoto 16mm M12 Lens (CIL160) (16 mm, f/1.9). Why: the lowest-priced covering M12 barrel ($15). Field of view on the IMX675: 18° H × 14° V (23° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Every covering option below comes from the M12 Lens collection or the C-Mount Lens collection, from 0.8 mm to 100 mm focal length, spanning 3° to 195° horizontal field of view on the IMX675.
Covers in the table means the lens image circle is at least as large as the 6.48 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX675
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX675. Confirm the lens image circle covers the 6.48 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 5.0 MP or higher so it resolves the 2.0 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the IMX675? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX675 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX675 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX675 lens and camera module FAQ
What lens fits the IMX675 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the IMX675’s 6.48 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the IMX675 active area (5.18 × 3.89 mm).
What is the IMX675 sensor size?
The IMX675 is a 1/2.8" format sensor with a 5.18 × 3.89 mm active area and a 6.48 mm diagonal, built on 2.0 µm pixels at 2592x1944 resolution.
Does Commonlands build a custom MIPI camera module for the IMX675?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX675 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX675 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
