onsemi AR0132 · 1.2MP 1/3" rolling-shutter CMOS image sensor
AR0132 Sensor Specifications & Compatible M12 and C-Mount Lenses

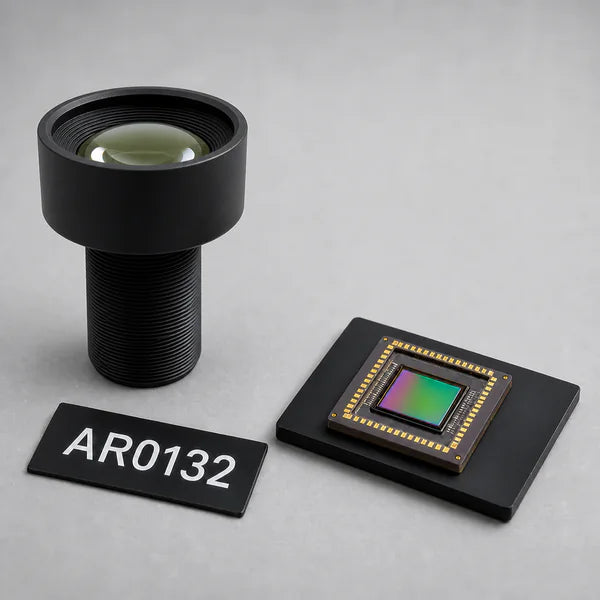

The AR0132 is an onsemi 1/3" rolling-shutter CMOS image sensor, for automotive and driver-assistance cameras. It captures 1280x960 (1.2 MP) on 3.75 um pixels across a 6.00 mm diagonal over Parallel / HiSPi in color / mono. Pick an M12 Lens for the 6.00 mm image circle from the table below, built on measured lens data rather than focal-length-only estimates.
AR0132 specifications
| Part number | AR0132 |
|---|---|
| Manufacturer | onsemi |
| Resolution | 1280x960 (1.2 MP) |
| Optical format | 1/3" |
| Active area | 4.8 × 3.6 mm |
| Sensor diagonal | 6.0 mm |
| Pixel size | 3.75 µm |
| Shutter | Rolling |
| Interface | Parallel / HiSPi |
| Color / mono | Color / Mono |
Manufacturer datasheet: onsemi AR0132 product page
Compatible Commonlands Lenses for the AR0132 with Calculated Field of View
Each field of view below is calculated for the AR0132 active area (4.8 × 3.6 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 6.0 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the AR0132
- Best ~30° HFoV: 9.1mm M12 Lens (CIL092) (9.1 mm, f/2.6). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the AR0132: 30° H × 22° V (37° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Low Distortion 4.2mm M12 Lens (CIL042) (4.2 mm, f/1.9). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the AR0132: 60° H × 46° V (71° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Fisheye 2.3mm M12 Lens (CIL292) (2.3 mm, f/2.1). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the AR0132: 120° H × 90° V (149° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the AR0132: 57° H × 45° V (69° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the AR0132: 33° H × 25° V (41° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Browse the M12 Lens collection and the C-Mount Lens collection for the AR0132. Covering lenses below run from 0.8 mm to 100 mm focal length and produce 3° to 195° horizontal field of view on its active area.
Covers in the table means the lens image circle is at least as large as the 6.0 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the AR0132
Start from the field of view your application needs, then read across to the focal length that produces it on the AR0132. Confirm the lens image circle covers the 6.0 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 1.2 MP or higher so it resolves the 3.75 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the AR0132? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the AR0132 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned AR0132 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
AR0132 lens and camera module FAQ
What lens fits the AR0132 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the AR0132’s 6.0 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the AR0132 active area (4.8 × 3.6 mm).
What is the AR0132 sensor size?
The AR0132 is a 1/3" format sensor with a 4.8 × 3.6 mm active area and a 6.0 mm diagonal, built on 3.75 µm pixels at 1280x960 resolution.
Does Commonlands build a custom MIPI camera module for the AR0132?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the AR0132 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your AR0132 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
Match a lens to your AR0132 camera
Get an engineer-verified lens recommendation for your sensor, format, and field of view.
Contact Commonlands engineering
