onsemi AR0341 · 2.9MP 1/3.6" rolling-shutter CMOS image sensor
AR0341 Sensor Specifications & Compatible M12 and C-Mount Lenses

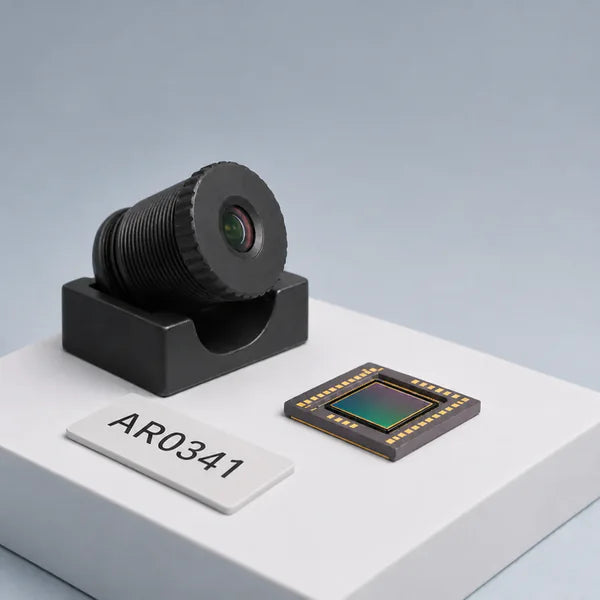

AR0341 is an onsemi 1/3.6" rolling-shutter CMOS image sensor from the Hyperlux AT family, targeting automotive ADAS imaging. It resolves 1920x1536 (2.9 MP) on 2.1 um pixels across a 5.16mm diagonal at up to 60 fps over MIPI CSI-2, in color. Commonlands matches M12 Lenses to its 5.16mm image circle and calculates the horizontal, vertical, and diagonal field of view for each candidate lens.
AR0341 specifications
| Part number | AR0341 |
|---|---|
| Manufacturer | onsemi |
| Family | Hyperlux AT |
| Resolution | 1920x1536 (2.9 MP) |
| Optical format | 1/3.6" |
| Active area | 4.03 × 3.23 mm |
| Sensor diagonal | 5.16 mm |
| Pixel size | 2.1 µm |
| Shutter | Rolling |
| Max frame rate | 60 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: onsemi AR0341 product page
Lens selection for the AR0341 with calculated field of view
Each field of view below is calculated for the AR0341 active area (4.03 × 3.23 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists focal length, mount, aperture (F#), and coverage. Follow the product links for distortion, ingress protection, dimensions, and resolution specifications. Coverage compares the lens image circle with the 5.16 mm sensor diagonal. Entries marked Circular image do not cover the full diagonal; part of the sensor lies outside the image circle. Run working-distance and object-size numbers through the field of view calculator.
Engineering picks for the AR0341
- Best ~30° HFoV: 7.2mm M12 Lens (CIL872) (7.2 mm, f/2.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the AR0341: 32° H × 25° V (40° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Wide-Angle 3.9mm M12 Lens (CIL339) (3.9 mm, f/1.6). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the AR0341: 60° H × 48° V (76° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Fisheye 1.95mm M12 Lens (CIL281) (1.95 mm, f/1.8). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the AR0341: 119° H × 95° V (153° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the AR0341: 49° H × 40° V (61° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the AR0341: 28° H × 23° V (36° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Find a lens for the AR0341 in the M12 Lens collection or the C-Mount Lens collection. The covering options below run from 0.8 mm to 100 mm focal length and span 2° to 226° horizontal field of view on the AR0341 active area.
Covers in the table means the lens image circle is at least as large as the 5.16 mm sensor diagonal. Confirm corner illumination and MTF at your aperture, wavelength, and working distance. A complete circular fisheye image fits inside the sensor only when its diameter is no larger than the sensor's short side. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the AR0341
Start from the field of view and working distance your application needs. Confirm that the lens image circle covers the active sensor diagonal and that the mount provides the required focus travel and rear clearance. A lens megapixel rating alone does not establish resolution on this sensor. Compare measured MTF at the spatial frequencies your task needs, at the intended aperture, wavelength, distance, and field position, accounting for the 2.1 µm pixel pitch. Estimate framing with the Commonlands field of view calculator.
Sourcing a camera module around the AR0341? Commonlands manufactures M12 lenses and C-mount lenses and ships from San Diego, with same-day shipping on in-stock lenses ordered before 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the AR0341 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned AR0341 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
AR0341 lens and camera module FAQ
What lens fits the AR0341 sensor?
A lens match requires sufficient image-circle coverage, suitable MTF, and mechanical clearance. Use the coverage column and calculated field of view to shortlist lenses, then verify the operating conditions on each product page.
What is the AR0341 sensor size?
The AR0341 is a 1/3.6" format sensor with a 4.03 × 3.23 mm active area and a 5.16 mm diagonal, built on 2.1 µm pixels at 1920x1536 resolution.
Does Commonlands build a custom MIPI camera module for the AR0341?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the AR0341 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your AR0341 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
