onsemi MT9V034 · 0.4MP 1/3" global-shutter CMOS image sensor
MT9V034 Sensor Specifications & Compatible M12 and C-Mount Lenses

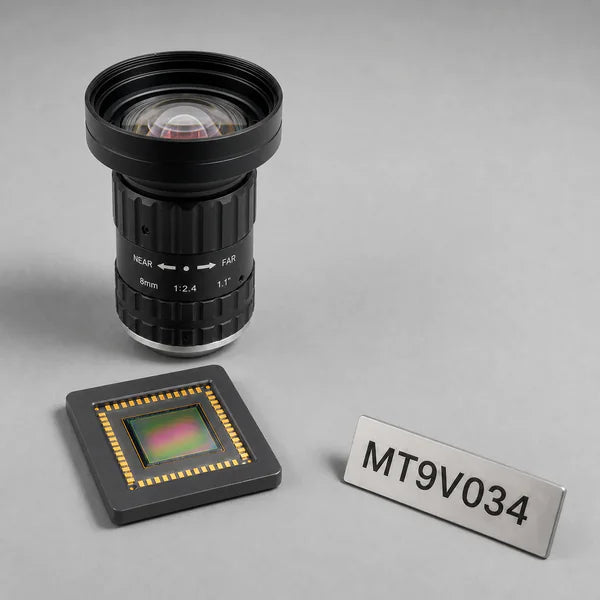

MT9V034 is an onsemi 1/3-inch global-shutter CMOS image sensor from the legacy Aptina Wide-VGA line, built for machine vision where motion artifacts must be eliminated. It reads 752x480 (0.4MP) across large 6um pixels with NIR response, runs at 60 fps, and offers a parallel or Sub-LVDS interface in color or mono. Commonlands matches M12 Lenses and C-Mount Lenses to its 5.35mm image circle and gives the calculated horizontal, vertical, and diagonal field of view.
MT9V034 specifications
| Part number | MT9V034 |
|---|---|
| Manufacturer | onsemi |
| Family | Wide-VGA (legacy Aptina) |
| Resolution | 752x480 (0.4 MP) |
| Optical format | 1/3" |
| Active area | 4.51 × 2.88 mm |
| Sensor diagonal | 5.35 mm |
| Pixel size | 6.0 µm |
| Shutter | Global |
| Max frame rate | 60 fps |
| Interface | Parallel / Sub-LVDS |
| Color / mono | Color / Mono |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: onsemi MT9V034 product page
Lens selection for the MT9V034 with calculated field of view
Each field of view below is calculated for the MT9V034 active area (4.51 × 2.88 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists focal length, mount, aperture (F#), and coverage. Follow the product links for distortion, ingress protection, dimensions, and resolution specifications. Coverage compares the lens image circle with the 5.35 mm sensor diagonal. Entries marked Circular image do not cover the full diagonal; part of the sensor lies outside the image circle. Run working-distance and object-size numbers through the field of view calculator.
Engineering picks for the MT9V034
- Best ~30° HFoV: 8.5mm C-Mount Lens (CIL508) (8.5 mm, f/2.4). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the MT9V034: 30° H × 19° V (35° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: 4mm C-Mount Lens (CIL529) (4 mm, f/2.8). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the MT9V034: 60° H × 40° V (69° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Fisheye 2.2mm M12 Lens (CIL282) (2.2 mm, f/1.8). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the MT9V034: 121° H × 76° V (146° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the MT9V034: 54° H × 36° V (63° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the MT9V034: 31° H × 20° V (37° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Browse the M12 Lens collection and the C-Mount Lens collection for the MT9V034. Covering lenses below run from 0.9 mm to 100 mm focal length and produce 3° to 198° horizontal field of view on its active area.
Covers in the table means the lens image circle is at least as large as the 5.35 mm sensor diagonal. Confirm corner illumination and MTF at your aperture, wavelength, and working distance. A complete circular fisheye image fits inside the sensor only when its diameter is no larger than the sensor's short side. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the MT9V034
Start from the field of view and working distance your application needs. Confirm that the lens image circle covers the active sensor diagonal and that the mount provides the required focus travel and rear clearance. A lens megapixel rating alone does not establish resolution on this sensor. Compare measured MTF at the spatial frequencies your task needs, at the intended aperture, wavelength, distance, and field position, accounting for the 6.0 µm pixel pitch. Estimate framing with the Commonlands field of view calculator.
Sourcing a camera module around the MT9V034? Commonlands manufactures M12 lenses and C-mount lenses and ships from San Diego, with same-day shipping on in-stock lenses ordered before 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the MT9V034 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned MT9V034 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
MT9V034 lens and camera module FAQ
What lens fits the MT9V034 sensor?
A lens match requires sufficient image-circle coverage, suitable MTF, and mechanical clearance. Use the coverage column and calculated field of view to shortlist lenses, then verify the operating conditions on each product page.
What is the MT9V034 sensor size?
The MT9V034 is a 1/3" format sensor with a 4.51 × 2.88 mm active area and a 5.35 mm diagonal, built on 6.0 µm pixels at 752x480 resolution.
Does Commonlands build a custom MIPI camera module for the MT9V034?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the MT9V034 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your MT9V034 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
