OmniVision OS04C10 · 4.1MP 1/2.9" rolling-shutter CMOS image sensor
OS04C10 Sensor Specifications & Compatible M12 and C-Mount Lenses

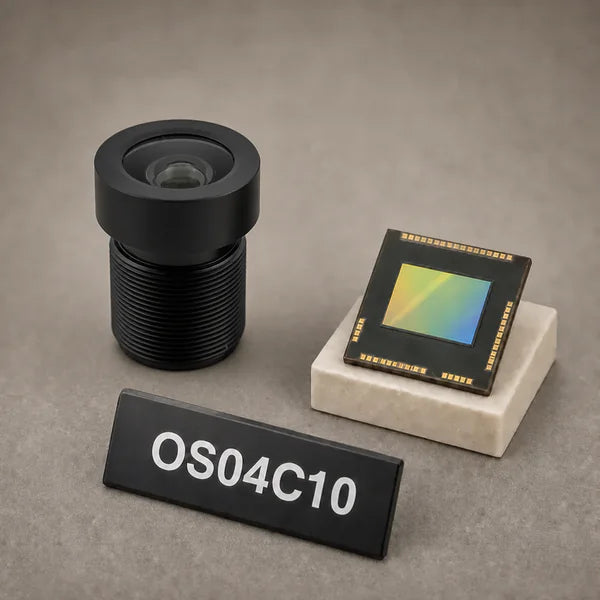

OS04C10 is an OmniVision 1/2.9-inch rolling-shutter CMOS image sensor from the PureCel Plus family, built for security and IP cameras that need clean low-light and NIR performance. It delivers 2688x1520 (4.1MP) on 2um pixels with near-infrared response at 60 fps over MIPI CSI-2. Commonlands matches M12 Lenses and C-Mount Lenses to its 6.18mm image circle and gives the calculated horizontal, vertical, and diagonal field of view.
OS04C10 specifications
| Part number | OS04C10 |
|---|---|
| Manufacturer | OmniVision |
| Family | PureCel Plus |
| Resolution | 2688x1520 (4.1 MP) |
| Optical format | 1/2.9" |
| Active area | 5.38 × 3.04 mm |
| Sensor diagonal | 6.18 mm |
| Pixel size | 2.0 µm |
| Shutter | Rolling |
| Max frame rate | 60 fps |
| Interface | MIPI CSI-2 |
| Color / mono | Color |
| NIR response | Enhanced near-infrared |
Manufacturer datasheet: OmniVision OS04C10 product page
Compatible Commonlands Lenses for the OS04C10 with Calculated Field of View
Each field of view below is calculated for the OS04C10 active area (5.38 × 3.04 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 6.18 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the OS04C10
- Best ~30° HFoV: Telephoto 10.4mm M12 Lens (CIL104) (10.4 mm, f/3.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the OS04C10: 29° H × 17° V (33° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Wide-Angle 5.3mm M12 Lens (CIL353) (5.3 mm, f/2). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the OS04C10: 60° H × 33° V (70° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Fisheye 2.7mm M12 Lens (CIL227) (2.7 mm, f/2.5). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the OS04C10: 119° H × 65° V (139° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the OS04C10: 63° H × 38° V (70° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the OS04C10: 37° H × 22° V (42° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Browse the M12 Lens collection and the C-Mount Lens collection for the OS04C10. Covering lenses below run from 0.9 mm to 100 mm focal length and produce 3° to 198° horizontal field of view on its active area.
Covers in the table means the lens image circle is at least as large as the 6.18 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the OS04C10
Start from the field of view your application needs, then read across to the focal length that produces it on the OS04C10. Confirm the lens image circle covers the 6.18 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 4.1 MP or higher so it resolves the 2.0 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the OS04C10? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the OS04C10 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned OS04C10 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
OS04C10 lens and camera module FAQ
What lens fits the OS04C10 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the OS04C10’s 6.18 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the OS04C10 active area (5.38 × 3.04 mm).
What is the OS04C10 sensor size?
The OS04C10 is a 1/2.9" format sensor with a 5.38 × 3.04 mm active area and a 6.18 mm diagonal, built on 2.0 µm pixels at 2688x1520 resolution.
Does Commonlands build a custom MIPI camera module for the OS04C10?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the OS04C10 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your OS04C10 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
